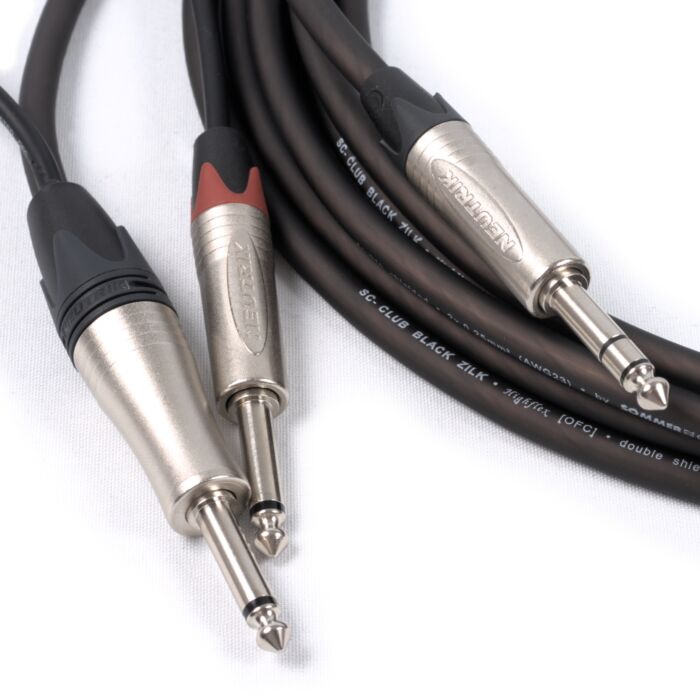

Pro Stereo Instrument Guitar Cable. Straight Jack. Instrument to 2 Amplifiers.

As the rise of the stereo instrument era is upon us, we have designed this professional grade stereo guitar cable.

One cable to two amplifiers!

Plug into your stereo instrument with ether a straight or right angle professional ¼” jack, then plug the jumbo jack into your left amplifier, and then plug the spur cable into the right amplifier.

And you are then ready to rock in stereo!

Connectors

A combination of professional Neutrik ¼” plugs - NP2X, NP2RX and NP2XL.

Features & Benefits

• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Ergonomic design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Cable

Due to the nature of Guitar instrument level working at high ohmage levels, we have picked out the right cable for the job, both containing carbon semiconductor shielding, the main cable is Sommer Zilk which was originally designed for microphone use but given it has 2 cores and semiconductor shielding makes it perfect for the job. And for the spur cable we have used Van Damme Pro-Patch Lite, again for the semiconductor shielding and its reduced size meaning that the weight of the overall lead is reduced.

SC-CLUB BLACK ZILK (Main Cable)

Advantages:

• Extremely flexible
• Low capacitance and damping due to gas-injected insulation
• AES/EBU- and DMX-conform
• Ambience upgrading due to high-class design

Application:

• A real “eyecatcher“ in the studio, on stage, e.g. in jazz clubs, cabaret setting
• Absolutely high-quality microphone cable for studio and live use

Technical Data:

• Properties:                 Analog
• Properties:                 OFC oxygen free copper
• Properties:                 Digital 110 Ω AES / EBU
• Application area:        Mobile outdoor / indoor
• Application area:        Studio / Broadcast
• Application area:        Installation
• Signal transmission:   symmetrical
• Construction:            (2LI2Y0,25mm²)(ST)CY
• Jacket material:         S-PVC
• Jacket Ø:                   7,30 mm

Unbalanced Pro-patch cable (Spur Cable)

Applications

• Mono mini jack and phono patch cables
• High density unbalanced audio patching
• Unbalanced audio rack wiring

Application Notes

• Low noise, high flexibility and low overall diameter
• Ideal for overall diameter limited connectors
• Dual thermoplastic/lapped copper screens for excellent noise rejection
• Ultra-pure oxygen free copper for outstanding sonic integrity

Mechanical Specification

• Conductors                 3 x 0.20 mm silver plated ultra-pure oxygen-free copper
• Conductor size            7 x 0.20 mm, 0.22 mm2, AWG 24/7
• Insulation                   Foamed polyethylene
• Screen 1                    0.40 mm conductive thermoplastic
• Screen 2                    80 x 0.10 mm close lap spiral bare oxygen-free copper
• Jacket material           Flexible PVC/Neoprene composite
• Overall diameter         50 (± 0.15mm)
• Bend radius                10 x overall diameter
• Operating temperature -20 to +70 ⁰C

Electrical Specification

• Resistance Conductor             < 90 Ohm/km
• Insulation                              > 5000 MOhm/km
• Capacitance Core to screen     90 pF/m
