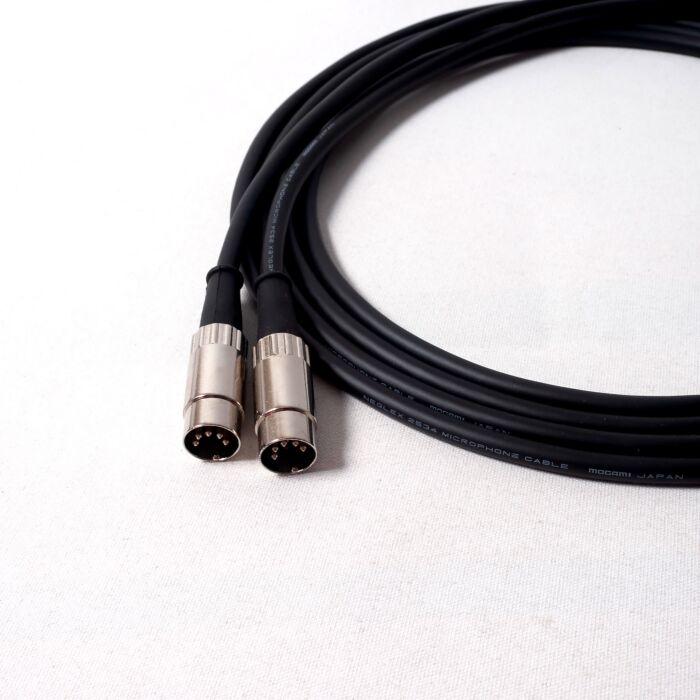

Quad 5 Pin Din In & Out Mogami Audio Lead. Play & Record
As low as
£31.27
In stock
SKU
SW.Din5-MOGAMI.2534.PRNT-SW.Din5(Quad)
Multibuy discounts calculated at checkout
.jpg)
Designed specifically for use with Quad Hi-Fi equipment, these cables are wired for Play and Record.
Designed specifically for use with Quad Hi-Fi equipment, these cables are wired for Play and Record.
These cables are manufactured using Mogami 2534 Starquad (4 conductor) cable and Switchcraft DIN plugs. These cables offer a Crystal-Clear sound with detail and presence across the whole frequency spectrum. Please check forum reviews around the internet. These cables will not be beaten for the price.
Mogami Neglex quad cable is the perfect cable for studios and HiFi enthusiasts. It provides an improvement in signal to noise ratio of 10-20db over equivalent twisted pair cables. Each of the four conductors have XLPE insulation (Cross-Linked Polyethylene) which has excellent electrical characteristics. The signal is carried along Mogami's 24 AWG Neglex Copper conductors.
The Switchcraft 5 pin DIN connectors we use for these cables are some of the best available. They are slimline whilst remaining exceptionally durable and precise. The pins are pointed for easy insertion.
- Mogami Neglex 2534 Starquad Cable
- Wired for 'Playback' and 'Record'. All pins are wired
- Switchcraft 05BL5MX 5 Pin Dins
- Terminated with a 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Conductor to Shield - 110pF/m(33.6pF/Ft) |
| Cable Resistance | DC Resistance at 20°c. Inner Cond - 0.083Ω/m(0.025Ω/Ft) |
| Cable Conductor | Size(mm²) - 0.226mm² (#24 AWG) |
| Cable Screening | Lapped Screen. Approx: 64 x 0.18 mm |
| Cable Jacket | Flexible PVC |
| Overall Diameter | 6mm |
| Cable Brand | Mogami |
| Application | Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
