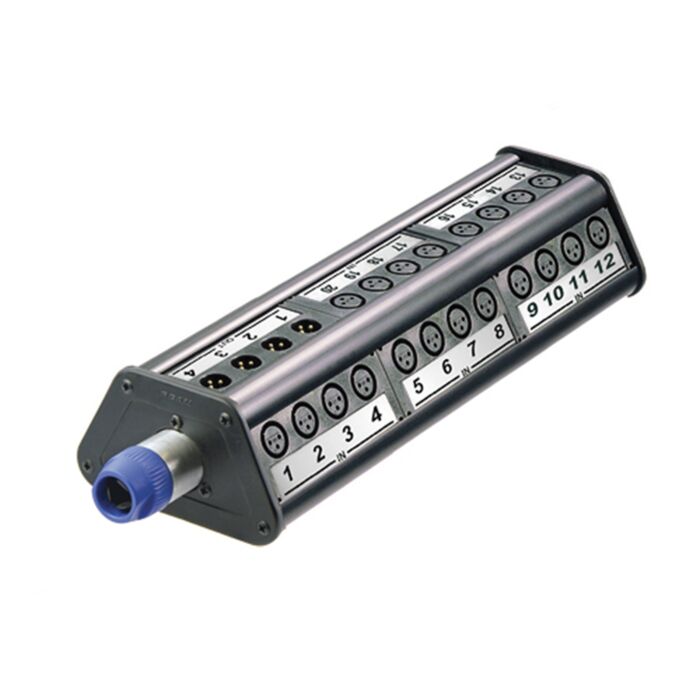

Rean Length 3 NSB3A-32.4 Stage Box 32 IN and 4 OUT
£120.55
In stock
We have 0 items in stock!
SKU
METAL_NSB3A-32.4
- Buy 10 for £114.52 each and save 5%
- Buy 20 for £108.50 each and save 10%
- Buy 50 for £102.47 each and save 15%
- Buy 100 for £96.44 each and save 20%
Type A, length 3, 32 IN (female/send) and 4 OUT (male/return)
Width: 134 mm, height: 79 mm, length: 372 mm
Supplied as disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.
Type A, length 3, 32 IN (female/send) and 4 OUT (male/return)
Width: 134 mm, height: 79 mm, length: 372 mm
Supplied as disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.
Technical Information
| Product | |
| Title | NSB3A-32/4 |
| Electrical | |
| Contact resistance | < 5 mΩ |
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Rated current per contact | 2 A |
| Mechanical | |
| Cable O.D. | 15 - 20 mm multicore |
| Insertion force | ≤ 10 N |
| Withdrawal force | ≥ 10 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 0.22 and 0.14 mm² |
| Wiresize | 24 and 26 AWG |
| Material | |
| Shell | Aluminium |
| Quad plates | POM |
| End Pieces | Thermoplastic |
| Environmental | |
| Temperature range | -25 °C to +70 °C |
| featured | No |
|---|---|
| Delivery Speed | Next Day delivery available if 'In Stock' |
