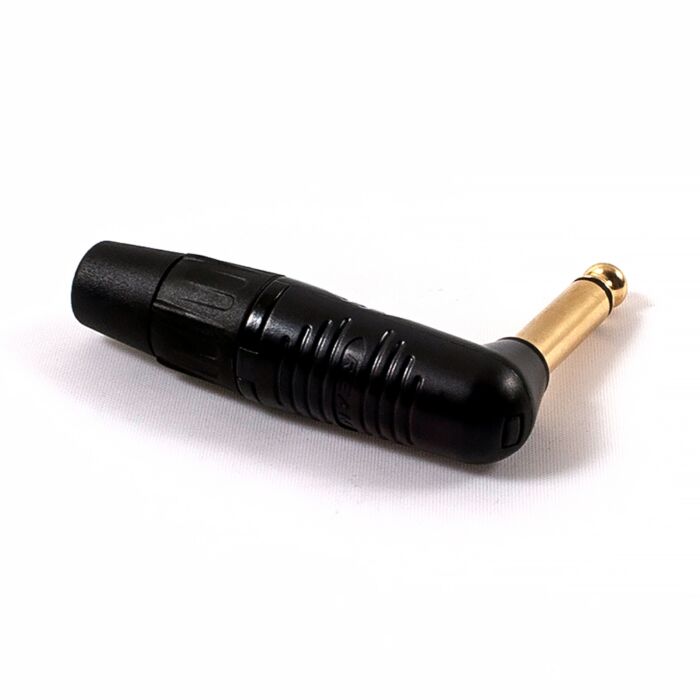

REAN by Neutrik Angled Jack Plug. RP2RC-B. Black & Gold
REAN by Neutrik Angled Jack Plug. RP2RC-B. Black & Gold
£3.06
In stock
We have 97 items in stock!
-
Buy 10 for
£2.91
each and save 5%
-
Buy 20 for
£2.75
each and save 10%
-
Buy 50 for
£2.60
each and save 15%
-
Buy 100 for
£2.45
each and save 20%
Mono 1/4" right-angle plug featuring a black plated housing and gold plated contacts.
Technical Information
Title |
RP2RC |
Connection Type |
Plug |
Contact rated current |
depends on mating connector mΩ |
Contact resistance |
depends on mating connector mΩ |
Dielectric strength |
1 kV dc |
Insulation resistance |
> 1.5 GΩ |
Lifetime |
> 1000 mating cycles |
Cable O.D. |
4 - 7 mm |
Wiresize |
1.0 mm² |
Wiresize |
18 AWG |
Wiring |
Solder contacts |
Boot |
PA6+30% GF |
Contact |
Brass ( CuZn39Pb3) |
Contact plating |
Nickel / Au |
Shell |
Zinc alloy |
Shell plating |
Nickel / Black |
Strain relief |
POM |
Temperature range |
-20 °C to +70 °C |
Flammability |
UL 94 HB |
Solderability |
complies with IEC68-2-20 |
More Information
Delivery Speed |
Next Day delivery available if 'In Stock' |
Mounting Method |
Cable Mount - Solder |
Series Range Name |
REAN Finger Groove |
Contact Material |
Gold Plated |
Number of Contacts |
2 Pole |
Pack Quantity |
Pack of 1 |
Manufacturer URL |
Download Data Sheet
|
Data Sheet URL |
Download Data Sheet
|
