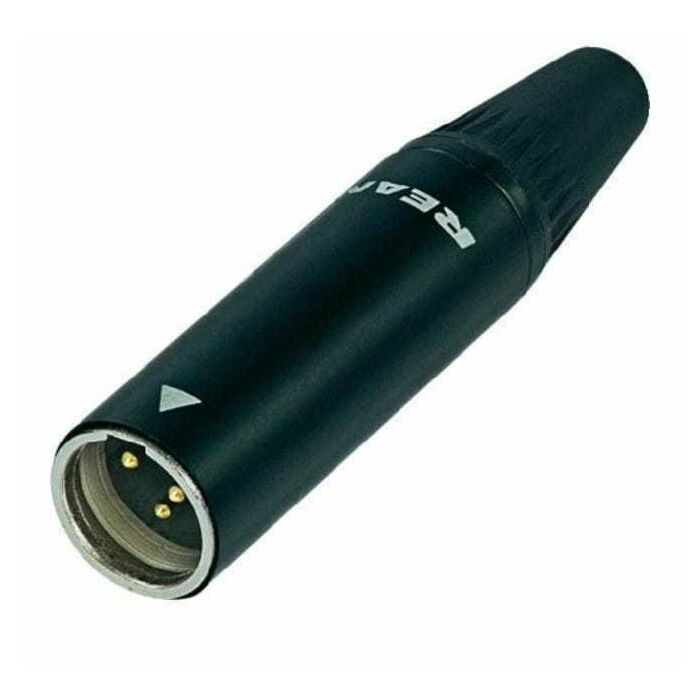

Rean 3 Pin RT3MC-B TINY XLR Connector

RT3MCB

3pole, male, mini XLR, black metal shell, gold plated contacts

The TINY XLR, one of the latest connectors from Rean. A sturdy connector with ‘Chuck type’ internal cable strain relief that ratchets itself onto the cable.

Electrical

• Contact resistance - < 5 mΩ (inner)
• Dielectric strength - > 0.5 kVdc
• Insulation resistance - > 1 GΩ
• Rated current per contact - < 5 A

Mechanical

• Cable O.D. - 2.0 - 4.5 mm
• Lifetime - > 1000 mating cycles
• Wire size - 0.22 mm²
• Wire size - 24 AWG
• Wiring - Solder contacts

Material

• Bushing - ABS
• Contact plating - Au
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6 30 % GR)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black
• Strain relief - PVC

Environmental

• Solder ability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +85 °C
