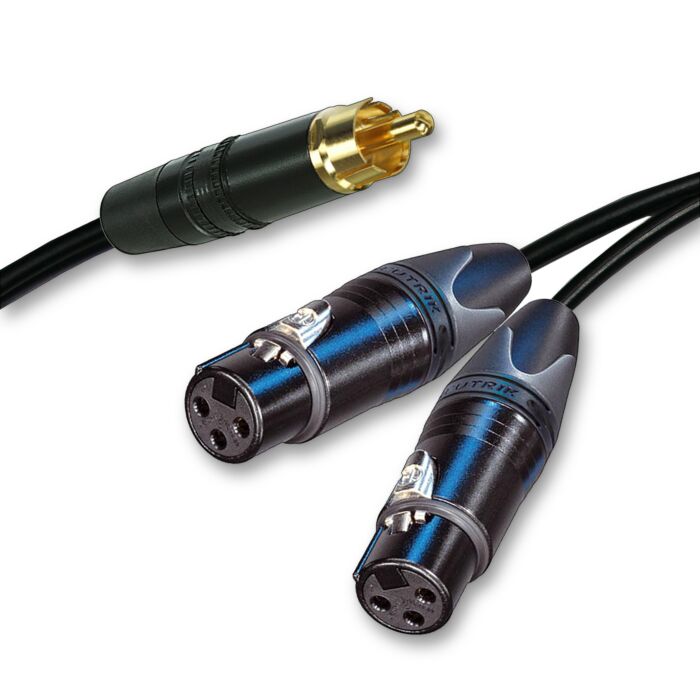

REAN Unbalanced RCA Split into 2 x Un-Balanced Neutrik Female XLRs, Sommer Onyx Twin Cable
As low as
£25.92
In stock
SKU
NYS373-SOONYX-NC3FXXB
Quality components from Rean and Sommer. Ideal for splitting un-balanced signal lines into two. For example, splitting the 'line out' of your amplifier into two different inputs.
Quality components from Rean and Sommer. Ideal for splitting un-balanced signal lines into two. For example, splitting the 'line out' of your amplifier into two different inputs.
A very useful lead that splits a mono signal into two separate mono lines, for example; it splits the RCA ‘Line Out’ of a Stereo Amplifier into two allowing you to connect to two different devices.
We have used Sommer’s Onyx 2025 Twin cable along with the industry standard Neutrik Female XLRs to make this lead. Both components are extremely well made and will stand the test of time. The XLRs offer excellent cable retention with their unique chuck type strain relief.
All pairs purchased will be sent marked as ‘RED FOR RIGHT’ & ‘BLACK FOR LEFT’ by using coloured marking rings or boots on the connectors.
We sell these leads in many different combinations. Please see in store for the different variations.
Sommer Onyx Twin Splitter Cable
Terminated with Neutriks NC3FXX XLR and REAN RCA Connectors
Manufactured using 4% Silver Solder
| Cable Capacitance | Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF |
|---|---|
| Cable Resistance | Cond. resistance per 1km (AES/EBU,DMX): 90 |
| Cable Conductor | AWG 24. Shielding: Copper spiral sleeve (AES/EBU, DMX): 0,22 mm² |
| Cable Screening | - |
| Cable Jacket | Jacket material: S-PVC. Width: 9.2 mm - Height: 4.5 mm |
| Overall Diameter | - |
| Brand | Sommer |
| Application | Tour & Studio Grade |
| Terminated with | Male RCA to Female XLR |
| Metal Type | Gold Plated |
| Number of Contacts (pins) | 3 Pole |
