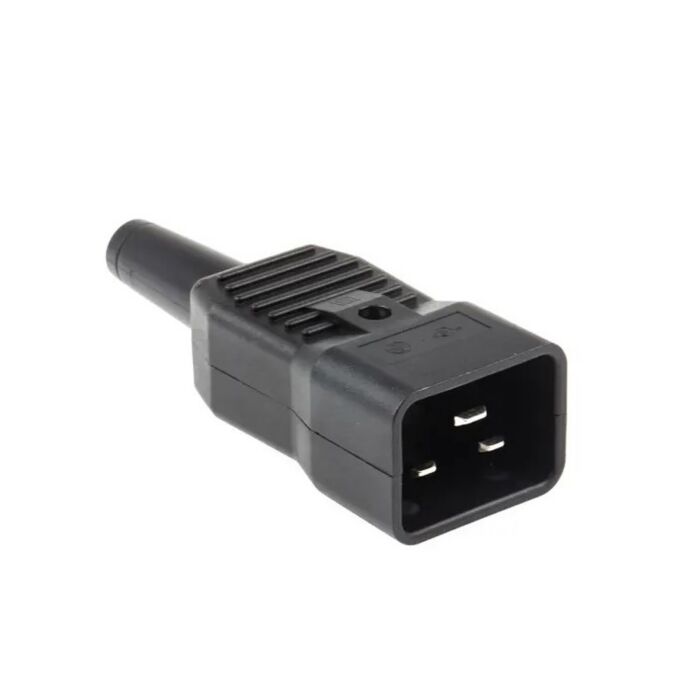

Schurter IEC C20 Male Cable Rewireable Hot Condition Plug. 4796.0000
£13.02
In stock
We have 5 items in stock!
SKU
MAINS_SCHURT.C20
Multibuy discounts calculated at checkout
- Buy 5 for £12.37 each and save 5%
- Buy 10 for £11.72 each and save 10%
- Buy 15 for £11.07 each and save 15%
- Buy 20 for £10.42 each and save 20%
A C20 plug that is 16A rated and has a contact resistance of 10mΩ, and an insulation resistance of 104MΩ. The operating temperature range is -40°C to +70°C and the plug is suitable for use with C19 mating sockets.
A C20 plug that is 16A rated and has a contact resistance of 10mΩ, and an insulation resistance of 104MΩ. The operating temperature range is -40°C to +70°C and the plug is suitable for use with C19 mating sockets.
A C20 plug that is 16A rated and has a contact resistance of 10mΩ, and an insulation resistance of 104MΩ. The operating temperature range is -40°C to +70°C and the plug is suitable for use with C19 mating sockets.
- Inline IEC60320 C20 Connector
- 16A Rated
- Internal screw terminals and strain relief
- VDE, SEMKO, SEV approved
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | IEC Plugs & Sockets |
| Mounting Method | Cable Mount - Screw Terminal |
| Contact Material | Solid Brass |
| Number of Contacts | 3 Pole |
| Current Rating | 16 amps |
| Voltage Rating | 230-240v |
| IP Rating | IP44 |
| Pack Quantity | Pack of 1 |
