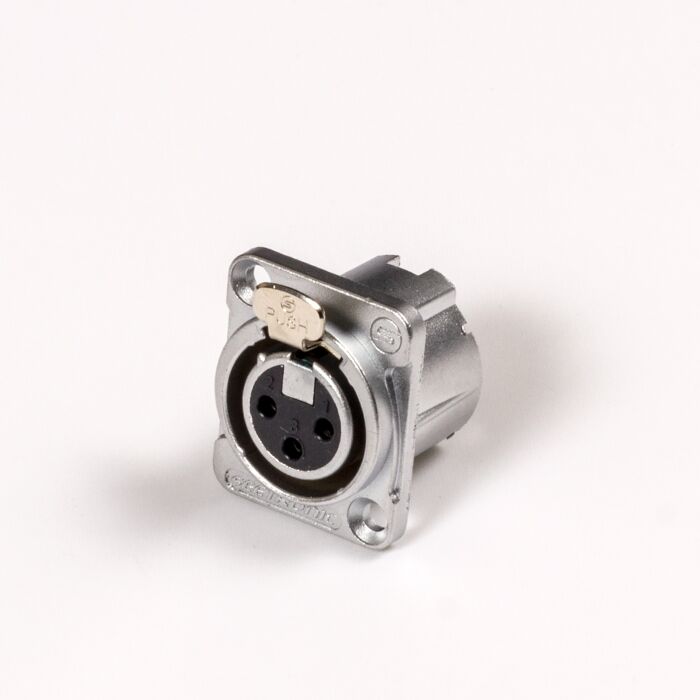

Seetronic MK3F2C Female 3 pin XLR Chassis Panel Mount. D-type Housing. Stage Snake
£1.32
In stock
We have 528 items in stock!
SKU
SEE_MK3F2C
Multibuy discounts calculated at checkout
- Buy 5 for £1.25 each and save 5%
- Buy 10 for £1.19 each and save 10%
- Buy 15 for £1.12 each and save 15%
- Buy 20 for £1.06 each and save 20%
3 Pin Female Silver XLR connectors. Chromium plated housing and Tin-Plated contacts.
A premium 3 pole female XLR chassis at a great price. These are fully compatible with Neutrik products and follow the same D-Type template for securing into stage boxes and rack panels. The entire assembly is made from metal so offers excellent reliability
Used for connecting; microphones, mixing desks, effects units, active speakers, DMX lighting. Essentially anything balanced! They can also be used for a secure midi termination on playback rigs.
- Dielectric strength: 1.5kVdc
- Insulation resistance: >10GΩ (initial)
- Rated current per contact: 16A
- Rated voltage: <50V
- Insertion force: ≤ 20N
- Withdrawal force: ≤ 20N
- Service life: 1000 mating cycles
- Wire size: Max. 2.5 mm²/14 AWG
- Locking device: Latch lock
- Boot: Polyurethane
- Contacts: Cu alloy
- Contact plating: Sn
- Insert: Polyamide (PA 66 +30 % GF)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Cr
- Strain relief: Polyacetal (POM)
- Flame-retardant grade: UL 94 HB
- Protection class: IP40
- Temperature range: -30℃to +80℃
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Solder |
| Contact Material | Tin Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
