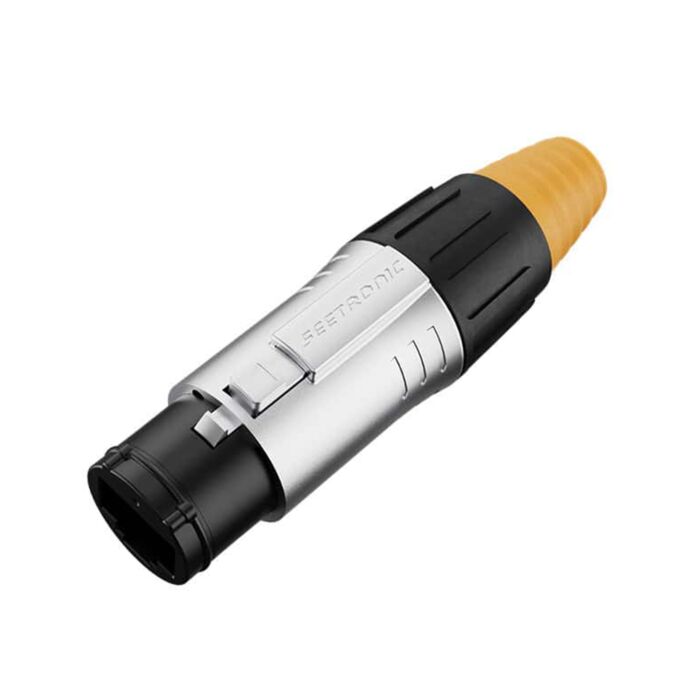

Seetronic SE8FC RJ45 IP65 female Ethercon Cable Coupler - Cable Mount

Key Features:

• Rugged Design: IP65 waterproof rating ensures reliable performance in wet and dusty environments.
• Secure Connection: Unique cable clamp and sturdy die-cast shell provide a secure connection, even in high-vibration applications.
• High Performance: CAT5e compliant according to TIA/EIA 568 and ISO/IEC 11801 standards.
• Easy Assembly: The plug features a simple, intuitive design for quick and easy assembly.
• Versatile Application: Compatible with cables with an outer diameter of 5-7mm.

Technical Specifications:

• Connection Type: RJ45 Female
• Cable O.D.: 5-7mm
• Contact Resistance: ≤ 10 mΩ
• Dielectric Strength: 1 KV DC
• Insulation Resistance: ≥ 0.5 GΩ
• Rated Current: 1.5 A
• Rated Voltage: 50 V
• Frequency Range: 1 – 100 MHz
• Service Life: > 1000 mating cycles
• Temperature Range: -30°C ~ +80°C

Standards and Certifications:

• TIA/EIA 586B
• IEC11801
