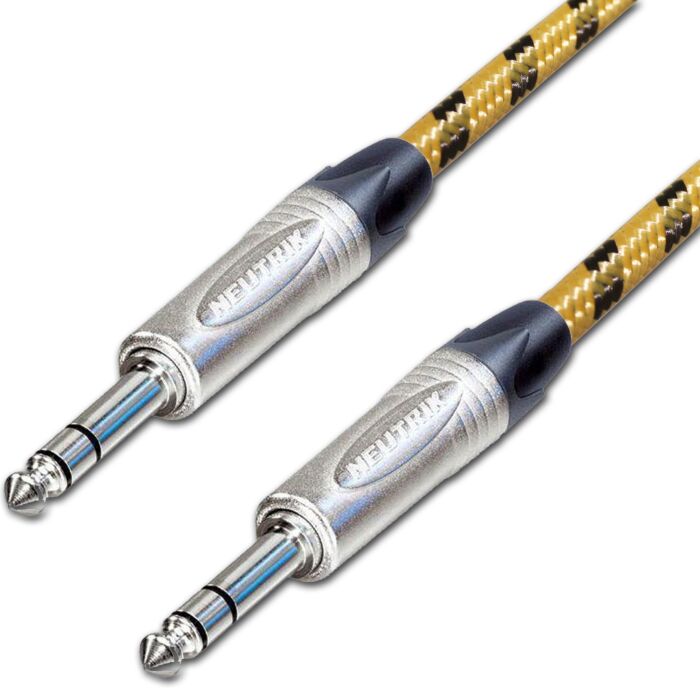

Sommer Club Series Vintage Balanced or Stereo ¼ Inch TRS Jack Lead. Neutrik NP3X
An excellent balanced cable made with Sommer’s Club Series MKII cable and Silver Neutrik connectors. Balanced leads minimise noise interference by using two twisted cores. The signals are sent perfectly out of phase with one another and then re-inverted at the destination. The interference collected along the cable length is also then inverted, so put out of phase and made silent. Genius! These leads offer superior build quality and durability with the incredibly robust silver Neutrik connectors and the tough construction of the Sommer cable, they also look pretty cool!
- Sommer Club Series MKII Vintage cable.
- Neutrik NP3X TRS Silver Jack connectors.
- Manufactured using 4% silver solder.
- "What are balanced cables"? Check out our Knowledge Blog
The Truth behind Gold and Silver Connectors........
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
|Cable Capacitance||Capac cond/shield - per 1 m - 115 pF|
|Cable Resistance||Cond resistance per 1 km< 55 Ohm|
|Cable Conductor||2 x 0.34 mm2 (AWG - 22) Copper strand per conductor - 19 x 0.15 mm|
|Cable Screening||Copper spiral tin-plated + semiconductor|
|Cable Jacket||PVC + fabric.|
|Application....||Tour & Studio Grade|
|Terminated with....||TRS Jack to TRS Jack|
|Metal Type....||Silver Plated|
