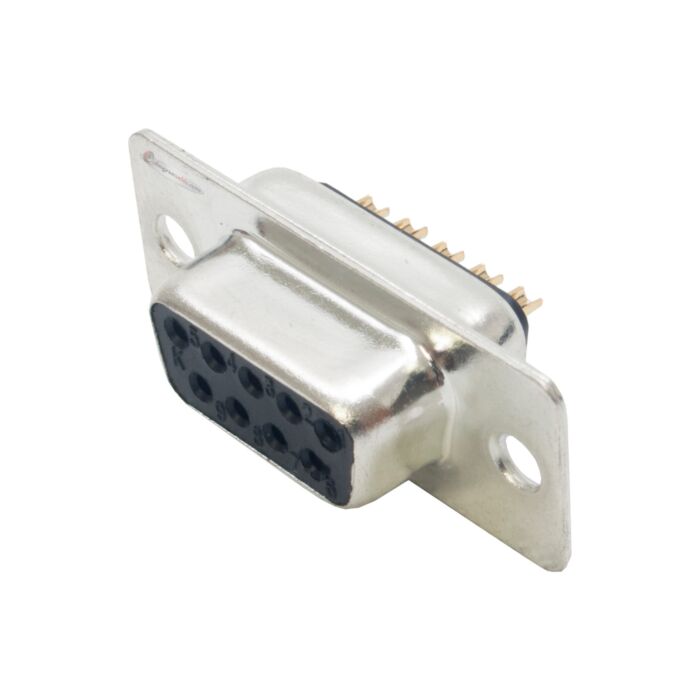

Standard Density. Machined 9 Pin D SUB Connector. High Quality Female Solder Type Pins
£1.80
In stock
We have 8 items in stock!
SKU
SERIAL_9D.MACH.FEMALE
Solder Sub D Connectors manufactured using high quality Machined Contacts. Product is available in both male and female variations.
Solder Sub D Connectors manufactured using high quality Machined Contacts. Product is available in both male and female variations.
Technical Info
- Insulator: Glass filled Polyester, Black. UL94 V-0
- Shell: Stamped Steel, Tin Plated
- Contact pins: Copper Alloy
- Machined Pins: Class 1, 500 inserts min. (DM)
- Contact Plating: Selective Gold over Nickel
- Contact current rating: 5 Amps max
- Contact resistance: 25mΩ max
- Operating temperature: -56°C to +105°C
- Withstanding voltage: 1000V AC for 1 minute
- Insulator resistance: 1000MΩ min
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 9 Pole |
| Pack Quantity | Pack of 1 |
