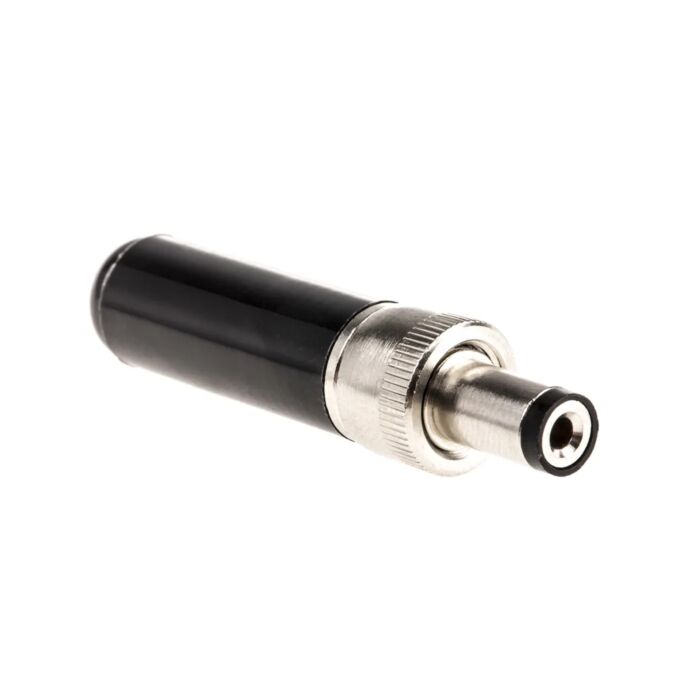

Switchcraft S761K Black Locking 2.0mm DC Plug Power Jack - 12mm Shaft
£7.18
In stock
We have 5 items in stock!
SKU
DC_S761K.Locking.12mm.BK
Multibuy discounts calculated at checkout
- Buy 5 for £6.82 each and save 5%
- Buy 10 for £6.46 each and save 10%
- Buy 15 for £6.10 each and save 15%
- Buy 20 for £5.74 each and save 20%
DC POWER PLUG, 0.080" (2.0mm) ID pin, 1.8" (45.72mm) overall length, black insulator tip, black handle, locking
DC POWER PLUG, 0.080" (2.0mm) ID pin, 1.8" (45.72mm) overall length, black insulator tip, black handle, locking
- Termination Style: Solder
- Contact Plating: Nickel
- High Temperature: Standard Temperature
- High Current: Standard Current
- Locking: Locking
- Handle Material: Thermoplastic
- Special Feature: Extended Length
- Centre Pin Size: 2 mm
- Contact Resistance: 0.01 Ohms
- Dielectric Withstanding Voltage: 500 Volts
- Insulation Resistance: 1000 Ohms
- Voltage Rating: 24 Volts
- Current Rating: 5 Amps
- Life Cycle: 5000 Cycles
- Coupling Locking Style: Threaded
- Temperature Range: -55?C to +85?C
- Shielding: Unshielded
- Minimum Temperature: -55 C
- Maxiumum Temperature: 85 C
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Inner Diameter: 0.08 in
- Cable Opening: 0.218 in
- Body Material: Copper Alloy
- Body Plating: Nickel
- Contact Material: Copper Alloy
- Contact Plating Type: Nickel
- Terminal Material: Copper Alloy
- Sleeve Material: Copper Alloy
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 2 Pole |
| Current Rating | 5 amps |
| Voltage Rating | 24v |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
