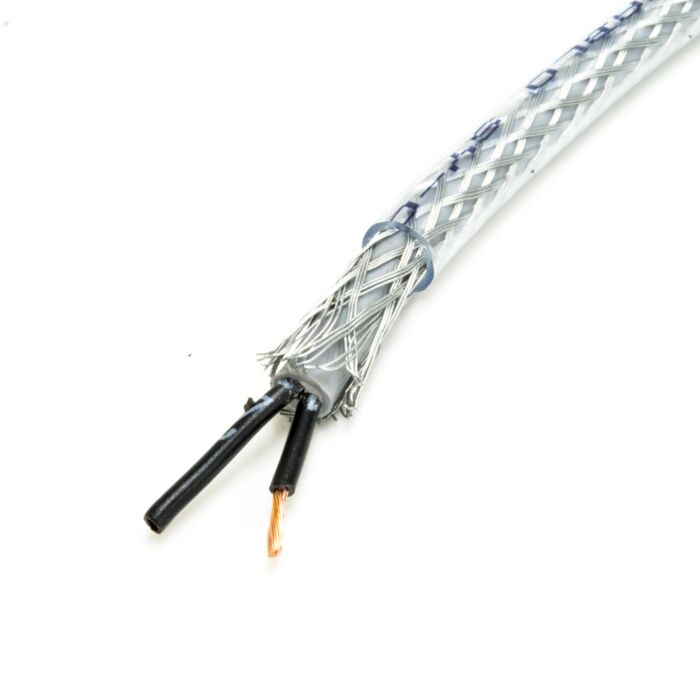

SY Control Cable. Steel Wire Braid Mains / Low Voltage Wire Armoured

As low as £0.19
In stock
SKU
MAINS.SY.

Sy cable - Plain annealed flexible copper conductors, PVC insulated, extruded PVC bedding, galvanised steel wire braid armour, transparent PVC outer sheath. 300/500 volts grade generally to BS6500 and VDE 0250 class 5.

Sy cable - Plain annealed flexible copper conductors, PVC insulated, extruded PVC bedding, galvanised steel wire braid armour, transparent PVC outer sheath. 300/500 volts grade generally to BS6500 and VDE 0250 class 5

  • Application : Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.The braided screen offers the best possible protection against mechanical damage and offers a level of Electro-magnetic shielding. The galvanised coating helps protect against corrosion.
  • Standards : Generally to BS6500, VDE0250
  • Conductor : Class 5 flexible annealed plain copper conductors to BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228
  • Insulation : PVC (Polyvinyl Chloride) Type TI 2 complying with BS EN 50363-3:2005
  • Bedding : PVC (Polyvinyl Chloride) TM2 as specified in BS EN 50363-4-1:2005
  • Braiding : GSWB (Galvanised Steel Wire Braid)
  • Minimum coverage of braiding shall be 50%
  • Sheath : PVC (Polyvinyl Chloride) conforming to TM 2 as specified in BS EN 50363-4-1:2005
  • Sheath Colour : Transparent
  • Voltage Rating : 300/500V
  • Operating Temperature : -15°C to +70°C
  • Minimum Bending Radius : 10 x overall diameter
  • Short Circuit Temperature : +160°C
  • Core Identification : Black with White numbers. (3 cores and above to include Green/Yellow). Coloured cores available.
More Information
Cable Type 240v Mains
Brand.... Un-Branded
Core Count.... No
Cable Conductor -
Cable Resistance -
Cable Capacitance -
Cable Screening -
Overall Diameter -
Cable Jacket -
Cable Colour.... No
