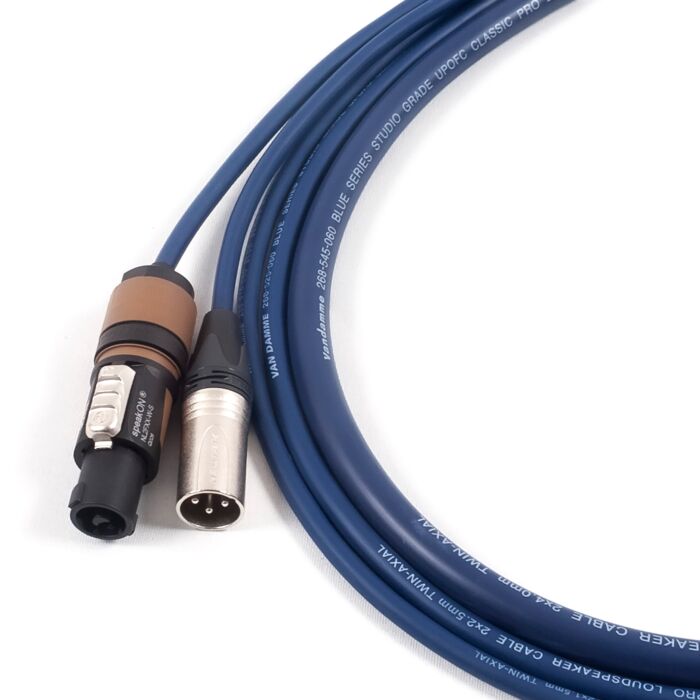

Van Damme Studio Grade (2 Pole) speakON to Male XLR Speaker Leads
As low as
£15.58
In stock
SKU
NL2FX-VDSPBE-PRNT-NC3MXX
Multibuy discounts calculated at checkout
High quality passive speaker leads terminated with Genuine Neutrik speakON’s and XLRs, available in various configurations. Choose your own lengths and conductor sizes.
High quality passive speaker leads terminated with Genuine Neutrik speakON’s and XLRs, available in various configurations. Choose your own lengths and conductor sizes.
Van Damme Blue Series cable has a flexible PVC outer jacket. The conductors are 'Bare Ultra-Pure Oxygen Free Copper' with fine stranding for superior conductivity and improved overall flexibility. This is a well-reviewed and highly sought-after cable. You will find Van Damme in many world-renowned recording studios, including Abbey Road.
Choosing the Conductor Size....
| Conductor Size | Recommended Wattage |
| 1.5mm | 0 - 200 watts |
| 2.5mm | 200 - 600 watts |
| 4mm | 600 - 2000 watts |
| 6mm | 2000 watts + |
….By increasing the conductor size, you decrease resistance. Your speaker will have a 'Wattage' rating, it is usually marked on the enclosure, use our guide above to match your Wattage to the appropriate size conductor.
Cable Properties |
|||
| Conductor Size | Overall Diameter | Conductor Stranding | Conductor Resistance |
| 1.5mm |
6.50mm |
84 x 0.15mm | 12.50 Ohm/Km |
| 2.5mm |
7.60mm |
147 x 0.15mm | 7.30 Ohm/Km |
| 4mm |
11.00mm |
227 x 0.15mm | 4.60 Ohm/Km |
| 6mm |
14.00mm |
189 x 0.20mm | 3.20 Ohm/Km |
- Neutrik NL2FX 2 pole Speakon connectors.
- Neutrik NC3MXX Male XLR connectors.
- The connectors are screwed onto the cable, not soldered.
- On smaller gauge wires the ends are tinned with a 3.5% silver solder to improve durability.
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Varies - See Listing |
| Cable Resistance | Varies - See Listing |
| Cable Conductor | Varies - See Listing |
| Cable Screening | Varies - See Listing |
| Cable Jacket | Flexible PVC composite sapphire blue RAL 5003 |
| Overall Diameter | Varies - See Listing |
| Cable Brand | Van Damme |
| Application | Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 2 Pole |
