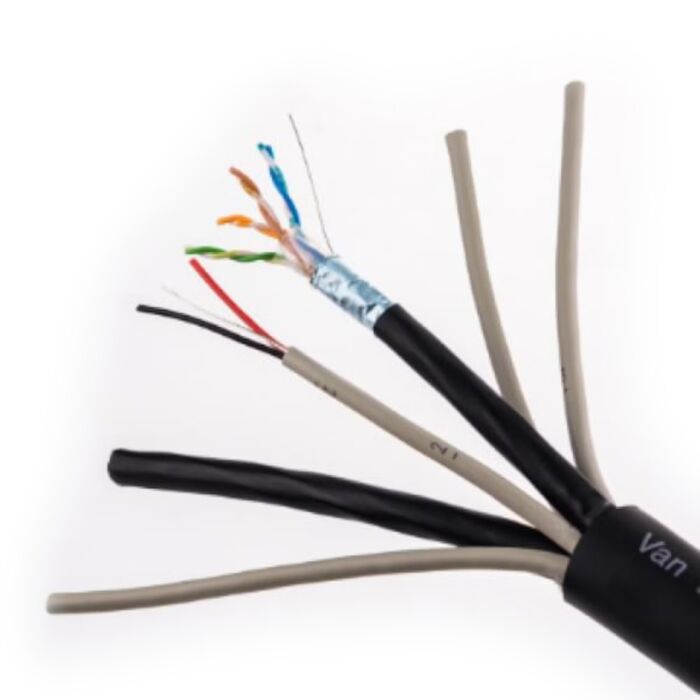

Van Damme TourCat 2 x Cat 6A solid F.UTP 4 x AES pair multicore

This product features 2 x Cat 6A F/UTP elements and 4 x 110 Ohm AES audio pairs. In addition to being able to run main and redundancy network signals, the 4 AES pairs can be used for analogue or digital audio, talkback or DMX512 lighting control

The Van Damme upgraded Cat 6A hybrid range features 2 and 4 way Cat 6A multicores, 2 Cat 6A and 4 110 Ω analogue/digital audio pairs, and 2 options with power - 2 Cat 6A, 4 110 Ω audio pairs, 1 3 x 2.5mm² HO5 power and 4 Cat 6A, 8 110 Ω audio pairs, 1 3 x 2.5mm² HO5 power. The 23 AWG solid conductor F/UTP Cat cable elements will support Gigabit Ethernet channel link at 100 metres, ideal for the common network protocols used in digital audio and video. The 110 Ω audio pairs are also suitable for DMX512 and other balanced data applications

Applications

Extended distance tactical cables for Ethernet and Ethernet based protocols

Ideal for use with the Neutrik Cat 6A Ethercon

Application Notes

Meets the requirements of Category 6A TIA/EIA-568-C-2, EN 50288-5-1 and ISO/IEC 11801

Passes Cat 5E channel link test at 100 metres
