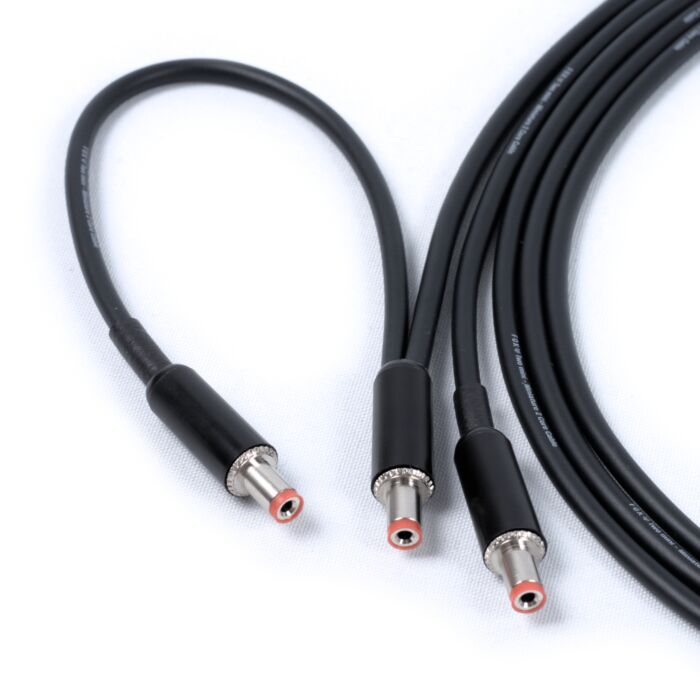

Voltage Doubler 2.1mm DC Cable for 9V or 12V guitar Effects pedals Pedal Board.

Professional Voltage Doubler DC Cable for Guitar Effects Pedals

This custom-built voltage doubler DC cable is designed for combining two compatible isolated DC outputs into a higher voltage supply for effects pedals requiring increased operating voltage.

Built using FOX Two Mini miniature 2 core cable with genuine Switchcraft DCP-762 True 2.1mm DC plug connectors, this cable is ideal for compact pedalboard power routing and professional stage or studio setups.

Important Compatibility Information

This is a voltage doubler cable and must only be used with compatible isolated DC power supply outputs.

• 2 x isolated 9V outputs → 18V output
• 2 x isolated 12V outputs → 24V output

Important: Never use this cable with non-isolated outputs or standard daisy chain connections.

Always verify pedal voltage requirements before use. Incorrect voltage can permanently damage connected equipment.

This cable is wired for standard centre negative guitar effects pedal applications.

Best For

• 18V and 24V effects pedal power applications
• Combining isolated PSU outputs
• Compact pedalboard power routing
• Professional pedalboard systems
• Studio and live pedal setups

Performance & Build Quality

FOX Two Mini is selected for its compact diameter, flexibility and suitability for dense pedalboard layouts where larger DC cable assemblies become difficult to manage.

The miniature 2 core construction helps keep pedalboard wiring tidy while maintaining dependable low-voltage DC power delivery.

This version uses genuine Switchcraft DCP-762 True 2.1mm DC plug connectors for dependable connection integrity, compact routing and reliable long-term pedalboard performance.

The compact connector format helps minimise pedalboard congestion and improve cable management between isolated PSU outputs and effects pedals.

Each cable is hand-built and individually tested in the UK before dispatch.

Key Features

• FOX Two Mini miniature 2 core cable
• Genuine Switchcraft DCP-762 True 2.1mm DC plug connectors
• Voltage doubler wiring configuration
• Designed for isolated PSU output combination
• Centre negative pedal wiring
• Compact pedalboard-friendly construction

Understanding Voltage Doubler Cables

Voltage doubler cables combine two isolated PSU outputs in series to create a higher output voltage for compatible effects pedals.

This makes them useful for 18V and 24V pedal power applications where increased operating voltage is required.

Voltage doubler cables should only be used when both the pedal and PSU manufacturer confirm compatibility.

FAQ

What does a voltage doubler cable do?

A voltage doubler cable combines two compatible isolated PSU outputs in series to create a higher output voltage.

Can this cable be used with all power supplies?

No. This cable must only be used with compatible isolated outputs approved for voltage doubler use.

Can incorrect use damage pedals?

Yes. Incorrect voltage can permanently damage effects pedals and connected equipment.

What polarity is this cable wired for?

This cable is wired for standard centre negative guitar effects pedal applications.

Why are Switchcraft DCP-762 connectors used?

Switchcraft DCP-762 True 2.1mm DC connectors are selected for their dependable fit, compact size and professional pedalboard reliability.

Is this cable hand assembled?

Yes. Every cable is hand-built and individually tested in the UK before dispatch.
