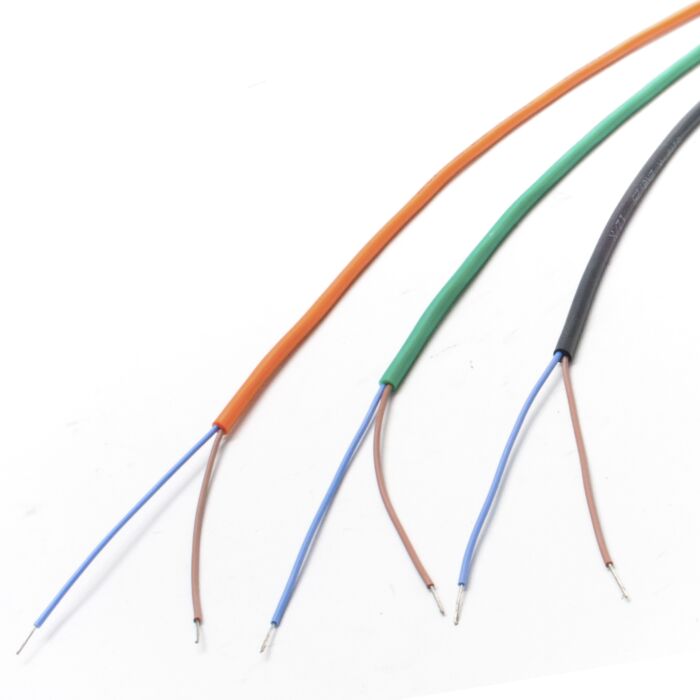

2 Core High Temperature Silicone Rubber Cable. (2x0.25mm). 4amp. DC Wiring. Black, Orange, Green

As low as £0.43
In stock
SKU
LAPP.EWK.SILICONE

Silicone cables with increased mechanical strength. This range of power and control cable are designed for use in machine and apparatus construction with increased temperature requirements up to +180°c

LAPP ÖLFLEX® HEAT 180 EWKF

Silicone cables with increased mechanical strength. This range of power and control cable are designed for use in machine and apparatus construction with increased temperature requirements up to +180°c

  • Flexible
  • UV-resistant
  • Temperature-resistant
  • Halogen-free (IEC 60754-1)
  • Cold-resistant
  • Flame-retardant (IEC 60332-1-2)



Application range

  • Low Voltage Lighting, including LED and Halogen
  • Low voltage DC cables including HIROSE HR10a range, tattoo, guitar FX
  • Circuit board wiring
  • Solar Technology
  • Handheld appliance cord-sets



Benefits

  • Longer service life in harsh conditions than conventional silicone cables
  • Notch and tear-resistant silicone compounds reduce damage resulting from mechanical stress
  • Good flexibility simplifies installation where space is limited
  • The remaining SiO2 ash has insulating properties after combustion
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances



Product Data

  • Manufacturer: LAPP
  • Cable Type: Multicore Silicone 2x0.25mm2
  • Conductor Stranding: 14 strands x 0.15mm tin-plated copper
  • Current rating; 4 amp @ 70°C
  • Conductor insulation: Silicone compound E12
  • Core identification: Blue / Brown
  • Lay up: Twisted cores
  • Outer Sheath compound: Silicone EWKF EM9
  • Outer Sheath Colour: Black RAL 9005
  • Outer Sheath Colour: Green RAL 6032
  • Outer Sheath Colour: Orange RAL 2003
  • Outer Diameter: 4.4 (+/- 0.2mm)
  • Temperature Rating flexing: 230°C
  • Short time Temperature Rating static: -50°C to +180°C
  • Voltage Rating: 300/500v Test voltage: 2,0 kV AC
  • Bend Radius: 5x O/D
  • Cable Net weight: 25 kg/km (Minimum)
More Information
Cable Type DC Power (low Voltage)
Brand.... LAP
Core Count.... 2 Way
Cable Conductor 2x0.25mm2. Stranding: 14 strands x 0.15mm tin-plated copper
Cable Resistance Current rating; 4 amp
Cable Capacitance Not Known
Cable Screening None
Overall Diameter 4.4 (+/- 0.2mm)
Cable Jacket Temperature Rating static: -50°C to +180°C. Black RAL 9005, Green RAL 6032, Orange RAL 2003. Outer Sheath compound: Silicone EWKF EM9
