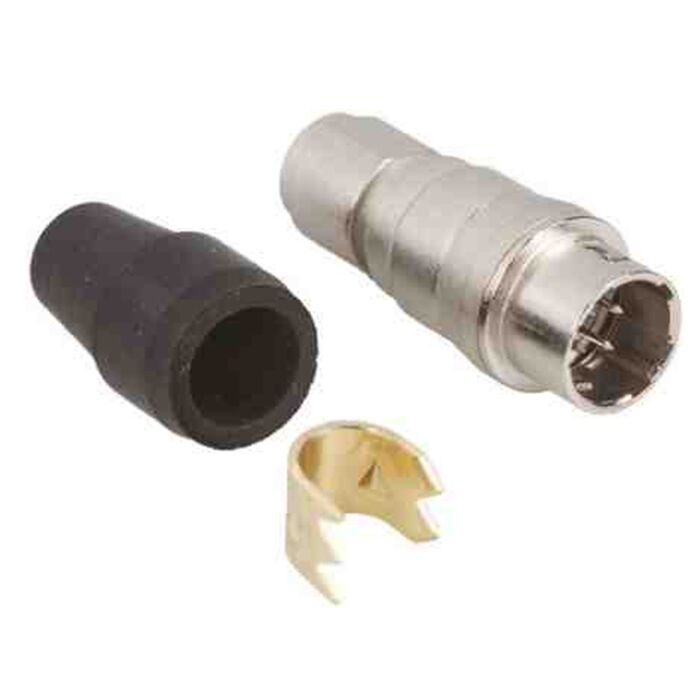

Hirose Male HR10A-7J-4P(73) Connector
HR10 Series
4 Pole Multipole connector. Mates with HR10A-7P-4S(73). Comes with rubber bushing to prevent damage from cable bending.
Connection ring incorporating a grid knurl is slip preventive. Provided with silver-plated standard terminals.
Status | In Production | |
---|---|---|
RoHS | Yes | |
Series | HR10 | |
Category | Circular Connectors | |
No. of Positions | 4 | |
Contact Mating Area Plating | Silver | |
Contact Gender | Male | |
Connector Type | N/A | |
Current Rating(Amps)(Max.) | 2 | |
Shell Size (dia) | 7 | |
Frequency (GHz)(Min) | N/A | |
Frequency (GHz)(Max) | N/A | |
Termination Style | N/A | |
Temperature (deg C) | -25 to 85 | |
Mating/Unmating Cycles | 1000 | |
Applicable Cable | Cable outer dia.φ5,Solder cup inside dia.φ0.8,Conductor AWG#26 max. | |
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Contact Material | Silver Plated |
Number of Contacts | 4 Pole |
Pack Quantity | Pack of 1 |
