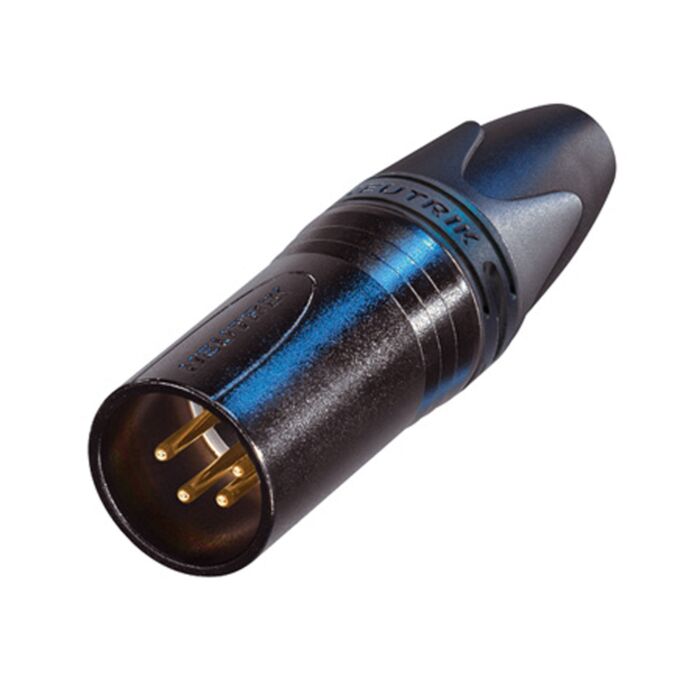

Neutrik 4 Pin NC4MXX-B Gold Male XLR Connector. Headphone Amp & DC power

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

• Male connector with improved locking recess without "window", more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Coloured rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, long lasting and dependable
• Internal thread on shell is well protected against any damage
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

• Connection Type - XLR
• Gender - male
• Capacitance between contacts - ≤ 7 pF
• Contact resistance - ≤ 3 mΩ
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 10 GΩ (initial)
• Rated current per contact - 10 A
• Rated voltage - < 50 V
• Cable O.D. - 3.5 - 8.0 mm
• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 1000 mating cycles
• Wiresize - max. 1.5 mm²
• Wiresize - max. 16 AWG
• Wiring - Solder contacts
• Locking device - Latch lock
• Boot - Polyurethan
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Zinc diecast (ZnAl4Cu1)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black chromium
• Strain relief - Polyacetal (POM)
• Flammability - UL 94 HB
• Standard compliance - IEC 61076-2-103
• Protection class - IP 40
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
