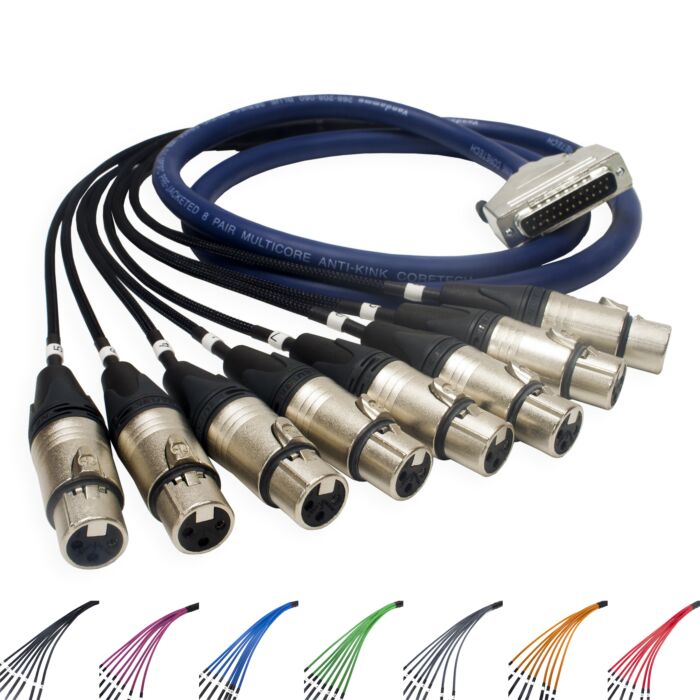

25 Pin D Sub to Female XLR Cable. D25 Van Damme Multicore Snake Lead. Techflex
As low as
£104.38
In stock
SKU
25PINDSUB-VD8MCPRNT-8xNC3FXX.TF
25 Pin Dsub looms. These compact connections feature in a vast array of studio-based equipment, including PatchBays, Mixing Desks and Interfaces. They comprise of 8 channels of balanced audio inside a small and lockable rectangular multipin connector.
25 Pin Dsub looms. These compact connections feature in a vast array of studio-based equipment, including PatchBays, Mixing Desks and Interfaces. They comprise of 8 channels of balanced audio inside a small and lockable rectangular multipin connector.
8 channel balanced d-sub leads wired to either ‘Tascam Analogue’ or 'Yamaha Analogue' standards, make your selection above. All made using the world renowned Van Damme Blue Series Multicore cable and Neutrik silver connectors. Each tail is braided with an expandable polyester sleeve and is held in place with a thick glue lined adhesive heat-shrink. Each individual tail is numbered for easy identification. All cables are made to order so can be customised to suit your needs.
- Male 25 Pin Sub D Connector. Standard Density.
- Metal 25 Pin Sub D Hood. Die Cast. Black Plastic Cap Jackscrews.
- Neutrik silver NC3FXX Female XLR connectors
- 30cm black 'Supaflex' braided tails. (can be customised to suit)
- Adhesive lined heat-shrink binding each braided tail.
- Numbered tails (1 to 8) for easy identification.
- Flexible Van Damme 8 pair multicore cable.
- 8 Balanced Channels.
- Wired to the Tascam Analogue Standard.
- Manufactured using 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to core pF/m 100 nominal |
| Cable Resistance | <90 Ohm/Km |
| Cable Conductor | Stranding 28 x 0.10 (0.22mm2) AWG 24/28 |
| Cable Screening | - |
| Cable Jacket | Material PVC composite Sapphire blue RAL 5003 |
| Overall Diameter | - |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
