Details
This lead is designed to be used with insert points on mixing desks. Starting from the insert point the signal is carried from the ‘Tip’ of the jack into your device (compressor, effects, etc), then back out of the device using the female XLR and into the mixing desk via the ‘Ring’ of the jack.
The Neutrik Jacks and XLRs are industry standard products with a highly regarded reputation, the cable retention inside the connectors is a unique ‘Chuck Type’ that ratchets itself onto the cable. The transparency and depth of sound that you get with the Sommer Onyx 2025 Twin cable and the durability of the connectors make for an excellent lead.
The cable is wired with ‘Tip Send’........
Tip > Male XLR Ring > Female XLR
Please note that this is NOT a balanced lead, please talk to us to discuss using balanced leads with effects channels.
Please see our alternative listings for ‘Ring Send’ options.

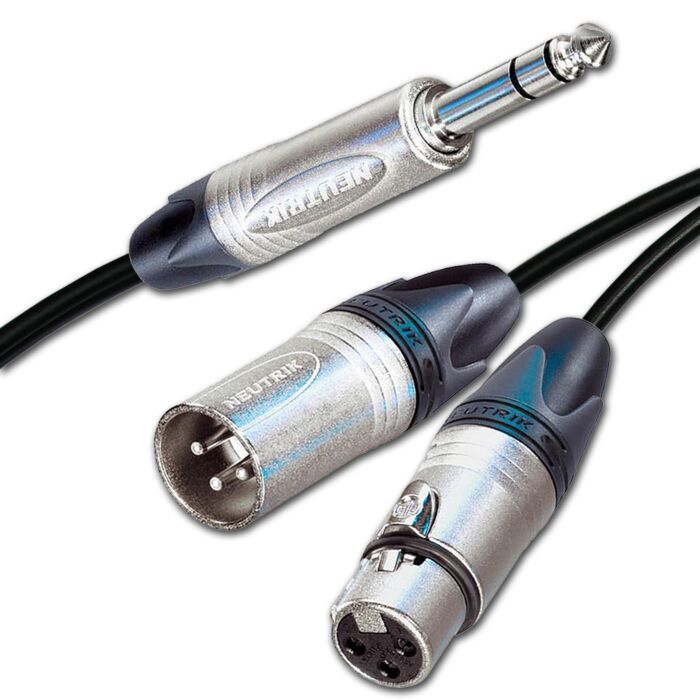

- Tour Grade Neutrik NP3X Silver 1/4" TRS Jack
- 1x) Tour Grade Neutrik NC3MXX Silver Male XLR (Send)
- 1x) Tour Grade Neutrik NC3FXX Silver Female XLR (Return)
- Sommer Onyx 2025 twin shotgun cable
- Cable split at approximately 15cm (can be easily modified)
- Manufactured using 4% silver solder
Additional Information
| Prime Link | No |
|---|---|
| Cable Capacitance | Capac. cond./shield. per 1 m - 120 pF |
| Cable Resistance | 1 km - 115 Ohm |
| Cable Conductor | Copper spiral shielding Shielding factor - 90 % No. of inner conductors - 2 x 1 x 0,25 mm2 |
| Cable Screening | - |
| Cable Jacket | Jacket, outer dimension PVC - 4,8 x 9,2 mm |
| Overall Diameter | - |
| Brand.... | Sommer |
| Application.... | Tour & Studio Grade |
| Terminated with.... | N/A |
| Metal Type.... | Silver Plated |
| Poles | 3 Pole |
| Works with.... | No |
| Special Attribute | Splitter |
| Core Count.... | N/A |
| Wireless System | No |
| Boot Colour | N/A |
