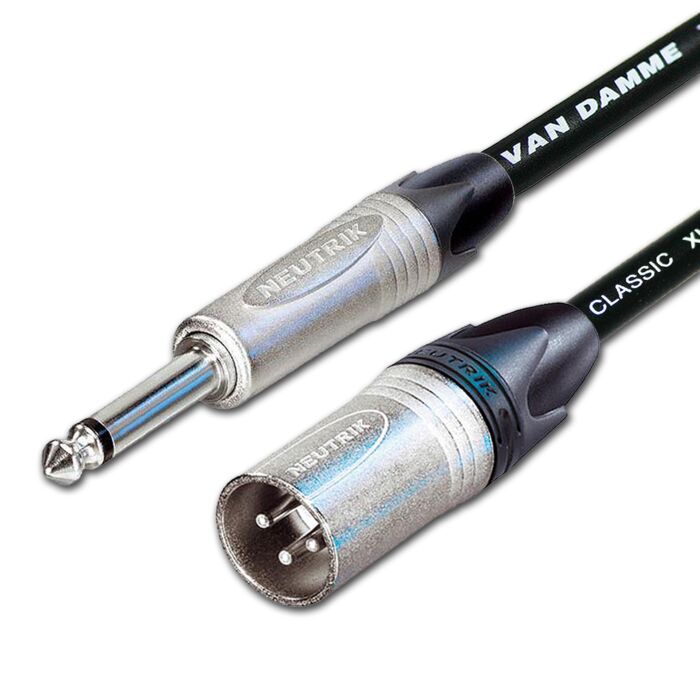

Van Damme Guitar Cable. Unbalanced Silver Neutrik 6.35mm TS Jack to Mono Male XLR.
An Unbalanced Male XLR to Jack lead for linking your guitar to a DI box, effects, etc or for connecting straight into a mixing desk. Tough components from Neutrik & Van Damme.
These leads are cleverly wired to improve the signal quality when connecting an instrument to a balanced input. Our method is tried and tested by studios and musicians around the world, including some big names such as 'Vibey Studios' in France. To do this we use a 2 core and screen cable, and wire the unused pin inside the XLR to the ground inside the jack. Its very simple, and very effective! Should you require any other wiring to suit your requirements, please ask
- Flexible Tour-Grade Van Damme XKE Microphone Cable
- Tour-Grade Neutrik Silver NP2X 1/4" Jack Plug
- Neutrik Silver NC3MXXMale XLR Connector
- Manufactured using 4% silver solder
- Find Out; How capacitance effects your cables and how to reduce it? HERE
- Find Out; The benefits Van Damme Cable? HERE
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
|Cable Capacitance||Capacitance Core to shield pF/m <90|
|Cable Resistance||Material - Bare ultra pure oxygen free copper wire Stranding - 4 x 0.20mm|
|Cable Conductor||Bare silver plated UPOFC. Stranding - 3 x 0.20mm / Bare UPOFC. Stranding - 4 x 0.20mm|
|Cable Jacket||Material - Flexible PVC/Neoprene composite. Overall diameter - 6.00mm ±0.15|
|Application....||Tour & Studio Grade|
|Terminated with....||Male XLR to Mono Jack|
|Metal Type....||Silver Plated|
