The 4 Cable Method - 3 Guitar Cables in One
As low as
£72.70
In stock
SKU
3C.Method.Loom
Multibuy discounts calculated at checkout
What is the 4 Cable Method? The 4CM is a way of connecting your Pedal Board to your Amp, and using the Effect's Loop 'SEND & RETURN' feature on your Amp.
What is the 4 Cable Method? The 4CM is a way of connecting your Pedal Board to your Amp, and using the Effect's Loop 'SEND & RETURN' feature on your Amp.

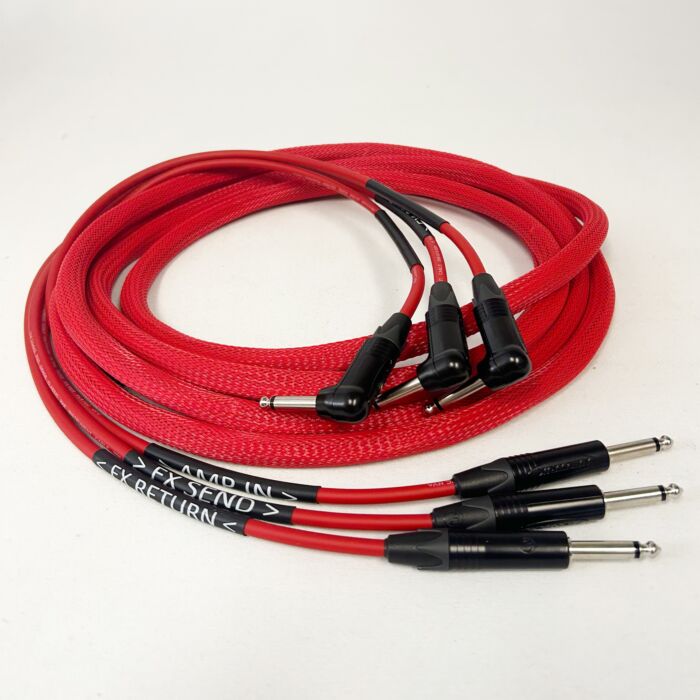

If you are using the 4 cable method these hand-made looms are the pro-choice for keeping a tidy setup. Despite being called the 4-cable method, the looms have 3 signal cables (the 4th cable in the method connects the Guitar to Pedal Board). We also offer a loom with a dedicated switching channel, find it in the related products below.
All our looms are Hand-Made to order so can be customised to suit your setup. Standard tails lengths are 50cm, these can be easily adjusted to suit, and if you need a bit of extra length to get around the back of your amp, no problem. We can also customise the jacks. Just ask.
Each channel is labelled at both sides with; FX Send / FX Return / GTR Out
- Straight to Right-Angle Neutrik Black & Silver Jacks
- Techflex FlexoPET Braiding
- Van Damme XKE Cables (Neon Pink uses FOX Cables)
- Instrument Cable Capacitance - Core to shield pF/m <90
- Average Overall Diameter of Loom - 13mm
- Standard tail lengths are 50cm, at both sides
| Delivery Speed | Made to Order - 4 Days MAX on delivery |
|---|---|
| Cable Capacitance | Core to shield pF/m <90 |
| Cable Resistance | Conductor Ohm/Km 47 |
| Cable Conductor | 7 x 0.20mm, 0.22mm2, AWG 24/7 |
| Cable Screening | Screen 1; 0.40mm conductive thermoplastic. Screen 2 ; 80 x 0.10mm close lapped OFC wire |
| Cable Jacket | Techflex Flexo PET |
| Overall Diameter | 3 Loomed Cables - Approx 13mm |
| Cable Brand | Van Damme |
| Contact Material | Silver Plated |
