Van Damme XKE Starquad 4 Core Cable. Balanced XLR Mic. Screened Bulk Reel TOUR

£1.70
  • Buy 10 for £1.62 each and save 5%
  • Buy 20 for £1.55 each and save 9%
  • Buy 50 for £1.48 each and save 13%
  • Buy 100 for £1.42 each and save 17%

Quick Overview

Tough, durable and easy to coil. This cable is ideal for outside broadcast and in situations that may be subject to EMI and RFI - for example in close proximity to lighting dimmer circuits and major power feeds. Priced per meter. Example; order a quantity of 10 to receive 1x10m length of cable.

Availability: In stock

Check Prime Stock
Ship to: Worldwide
  • Black
  • Blue
  • Red
  • Yellow
  • Green
  • White
  • Purple
  • Orange
  • Grey
  • Brown

* Required Fields

£1.70

Details

Van Damme Tour Grade Classic XKE Starquad Microphone Cable

Balanced/Stereo, Microphone Cable

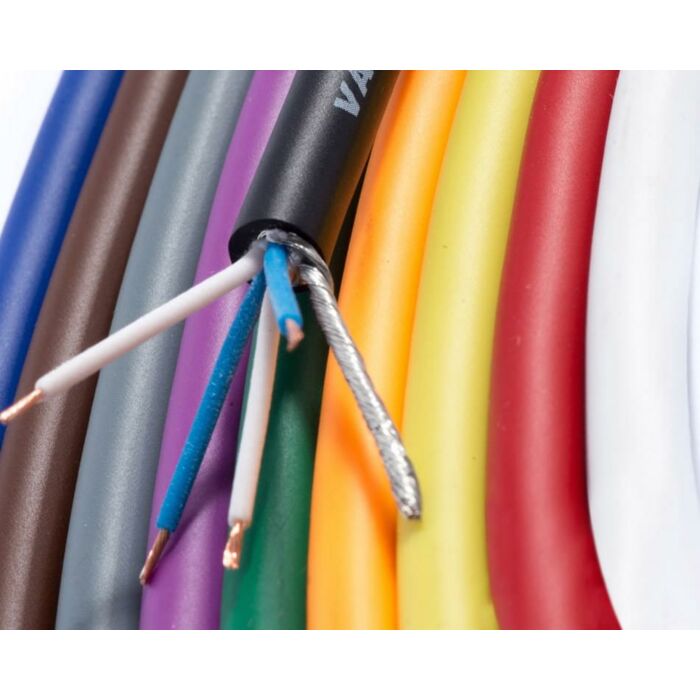

4 Core and Screen, Silver Plated Copper Wire Cores, Tinned Copper Wire screen



Starquad cable offers unparalleled rejection of radio frequency interference (RFI) and electromagnetic interference (EMI) by using 4 twisted cores of UPOFC (ultra pure oxygen free copper) for transmission. This cable is ideal for environments where electrical circuits are in high use, long cable runs and for musicians who want uncompromised results



4 Core and Screen relates to the amount of carrier signals inside the cable, in this case five. This is a balanced/stereo cable. The 4 cores are the signal carriers (2 per signal line) and the screen is the ground/shield



Tech Specs



Mechanical specification Conductor

Material Bare silver plated ultra pure oxygen free copper wire

Stranding 7 x 0.08mm

Material Bare ultra pure oxygen free copper wire

Stranding 32 x 0.08mm



Insulation

Material XLPE Cross linked polyethylene

Diameter 1.35mm ±0.10

Colour coding 2 x white 2 x blue



Cabling

Type Starquad

Lay length ~25mm



Screen

Type 128 x 0.10mm braided tinned oxygen free copper wire

Coverage 98% optical coverage



Jacket

Material Flexible PVC/Neoprene composite

Average thickness 0.50mm

Overall diameter 6.00mm ±0.15



Physical properties un-aged Jacket (at 60ºC)

Tensile strength >8N/mm2

Elongation >250%

Heat shock test 150 ºC x 1 hour - no cracks

Test voltage 1000 Vdc x 1 minute OK



Electrical characteristics Resistance

Conductor Ohm/Km <93

Screen Ohm/Km <25

Insulation M Ohm/Km >5000



Capacitance

Core to core pF/m50 nominal

Core to screen pF/m95 nominal

Additional Information

Cable Type Mic / Stereo / Balanced
Brand.... Van Damme
Core Count.... No
Conductor Size.... No
Cable Conductor Bare silver plated UPOFC wire, Stranding; 7 x 0.08mm. Bare UPOFC wire, Stranding; 32 x 0.08mm
Cable Resistance Conductor Ohm/Km <93
Cable Capacitance Core to screen pF/m95 nominal
Cable Screening 128 x 0.10mm braided tinned OFC wire. Coverage 98%
Cable Jacket Flexible PVC/Neoprene composite
Overall Diameter 6.00mm ±0.15
Cable Colour.... N/A
