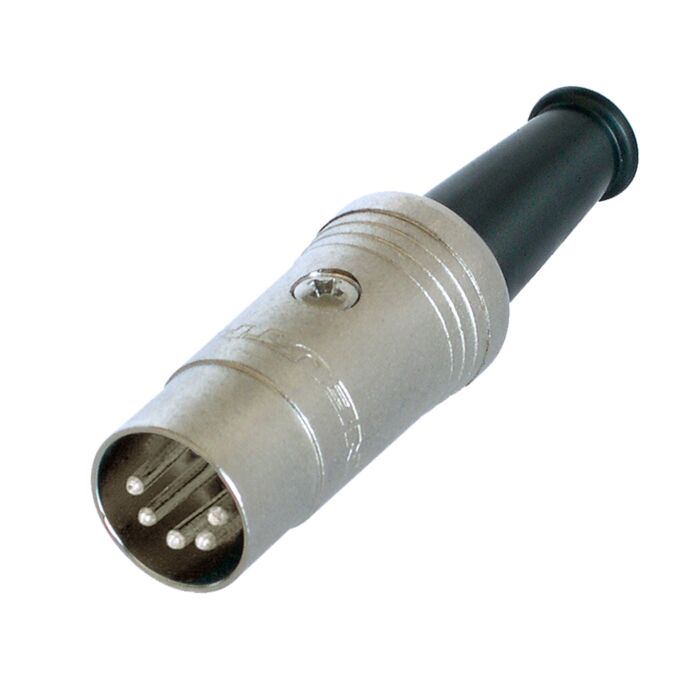

5 Pin Din Midi Connector. Rean NYS322. Silver body. Silver pins
£1.84
In stock
We have 1165 items in stock!
SKU
DIN_NYS322*3
Multibuy discounts calculated at checkout
- Buy 5 for £1.75 each and save 5%
- Buy 10 for £1.66 each and save 10%
- Buy 15 for £1.56 each and save 15%
- Buy 20 for £1.47 each and save 20%
This is a solid Midi connector from Rean, an affiliate of Neutrik. This connector will mate with any standard midi device. We recommend Van Damme XKE cable for this connector which we sell in a variety of colours.
This is a solid Midi connector from Rean, an affiliate of Neutrik. This connector will mate with any standard midi device. We recommend Van Damme XKE cable for this connector which we sell in a variety of colours.
Tech Specs
Electrical
- Contact resistance - < 10 mΩ
- Dielectric strength - 0,5 kVdc
- Rated current per contact - depends on mated connector A
Mechanical
- Cable O.D. - ≤ 5 mm
- Wire size - 26 AWG
Material
- Bushing - PVC
- Contact plating - 2 µ Ag
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA 6 30 % GR)
- Shell - Zinc diecast (ZnAl4Cu1), gal Ni plated
- Strain relief - CRIMP type zn plated
Environmental
- Solderability - Complies with IEC 68-2-20
- Temperature range - -20 °C to +70 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
