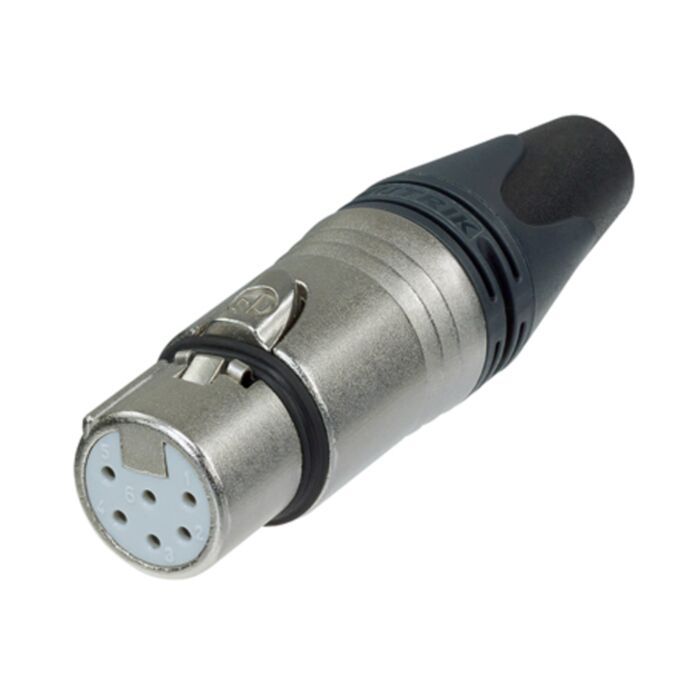

6 pole female cable connector with Nickel housing and silver contacts. Equivalent to switchcraft pin layout.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
6 pole female cable connector with Nickel housing and silver contacts. Equivalent to switchcraft pin layout.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Product | |
Title | NC6FSXX |
Connection Type | XLR |
Gender | female |
Electrical | |
Capacitance between contacts | ≤ 7 pF |
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 2 GΩ (initial) |
Rated current per contact | 7,5 A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 3.5 - 8.0 mm |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | max. 1.0 mm² |
Wiresize | max. 18 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Equivalent | Switchcraft pin arrangement |
Material | |
Boot | Polyurethan |
Contact plating | 2 µm Ag over 2 µm Ni |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Strain relief | Polyacetal (POM) |
Environmental | |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Neutrik XX Series |
Contact Material | Silver Plated |
Number of Contacts | 6 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
