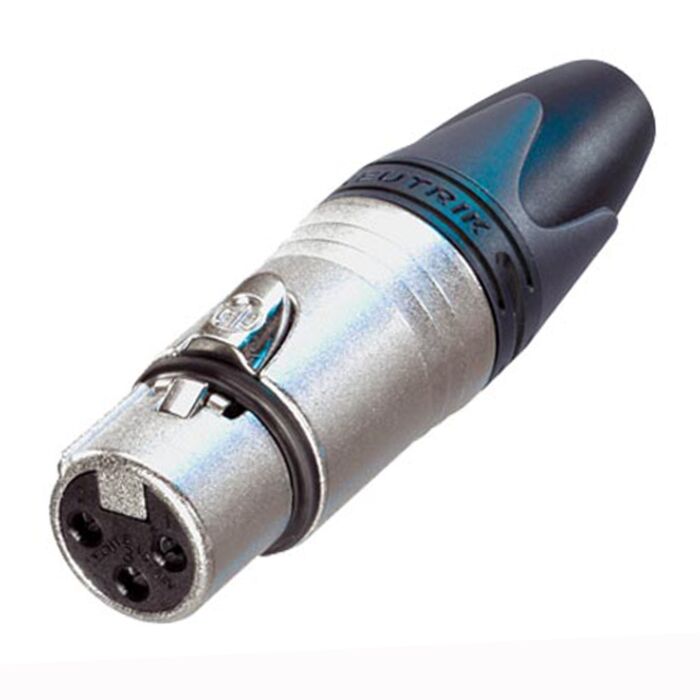

Neutrik 3 Pin NC3FXX Female XLR Connector

Neutrik >NC3FXX XLR

Balanced XLR Connector, 3 Pole, Female, Silver Contacts, Silver Housing

This classic looking XLR connector uses Neutriks new rugged chuck type cable strain relief along with a tough plastic boot and die cast silver metal casing. The simple, robust components make this one of the leading XLR connectors in its field and an industry standard product. Its solid metal latch will ensure that this connector remains connected.

The Silver Contacts are made from bronze and plated with silver. The conductivity is superior to gold.

3 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case three. This is a balanced/stereo cable. Two signal carriers and a ground

Tech Specs

Electrical

• Capacitance between contacts - ≤ 4 pF
• Contact resistance - ≤ 3 mΩ
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 2 GΩ (initial)
• Insulation resistance - > 1 GΩ (after damp heat test)
• Rated current per contact - 16 A
• Rated voltage - 50 V

Material

• Boot - Polyuretan
• Bushing - Polyamide (PA 6 15% GR)
• Contact plating - 2 µm Ag
• Contacts - Bronze (CuSn8)
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
• Strain relief - Polyacetal (POM)
