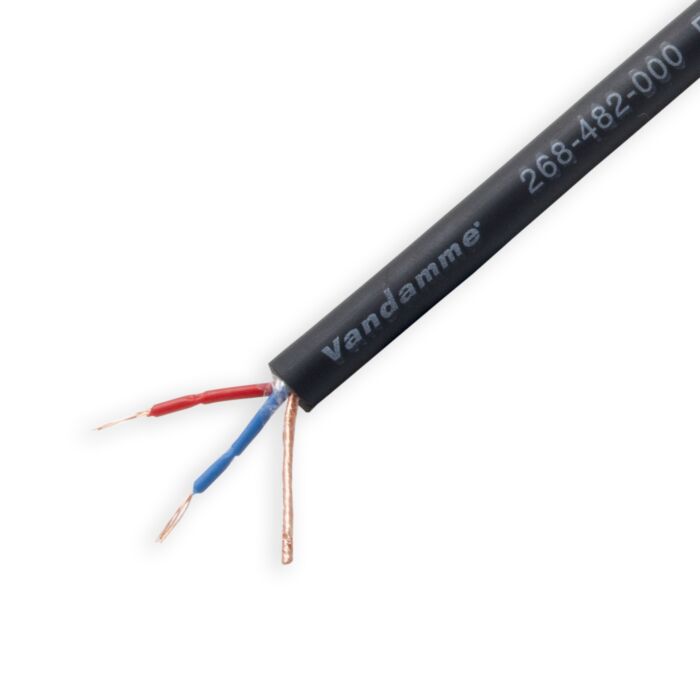

Van Damme Digi-Tour DMX 2 Core and Screen AES/EBU Balanced. Lighting. 268-482-00

As low as £0.40
In stock
SKU
VD.DMX.2xCORE.BLACK

Van Damme Digi-Tour Grade AES/EBU microphone and DMX cable is a black jacketed version of the Van Damme Green Series 6.20mm OD AES microphone cable 268-402-050. Low capacitance and stable characteristic impedance ensure that signals remain error and jitter free over long distances. Also suitable for balanced analogue audio use.

**PRICED PER METER (i.e. Quantity of 10 = 10m)**

Van Damme Digi-Tour Grade AES/EBU microphone and DMX cable is a black jacketed version of the Van Damme Green Series 6.20mm OD AES microphone cable 268-402-050. Low capacitance and stable characteristic impedance ensure that signals remain error and jitter free over long distances. Also suitable for balanced analogue audio use.



Conductor

Material - Bare ultra pure oxygen free copper wire

Stranding - 7 x 0.20mm (0.22mm2) AWG 24/7



Insulation

Material - Foam skin polyolefin

Average thickness - 0.45mm

Diameter - 1.40mm ±0.10

Colour coding - Red/blue



Cabling

Type - Twisted pair + cotton fillers

Lay length - ~50mm



Screen

Type - 72 x 0.10mm lapped bare copper >90% coverage

Separator – Polyester



Jacket

Material - PVC composite Leaf green RAL 6002

Average thickness - 1.50mm

Overall diameter - 6.20mm ±0.05

Bend radius - 10 x overall diameter

Physical properties un-aged - Jacket (at 60ºC)

Tensile strength - >12.5N/mm2

Elongation - >100%

Heat shock test - 121 ºC x 1 hour - no cracks



Resistance

Conductor - <93 Ohm/Km

Insulation - >5000 M Ohm/Km



Capacitance

Core to core - 50 pF/m nominal



Impedance - 110 Ohms ±20%



Test voltage - 1000 Vdc x 1 minute OK




More Information
Cable Type 110 Ohm DMX
Brand.... Van Damme
Cable Conductor -
Cable Resistance -
Cable Capacitance -
Cable Screening -
Overall Diameter -
Cable Jacket -
