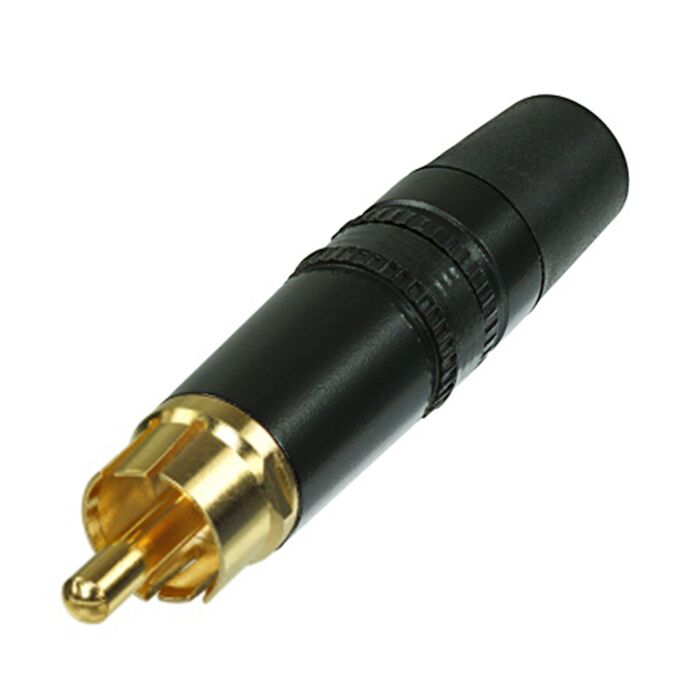

Rean NYS373 Phono RCA Connector. Male Plug. (colour coded x6)

£1.55
  • Buy 10 for £1.41 each and save 10%
  • Buy 20 for £1.35 each and save 13%
  • Buy 50 for £1.29 each and save 17%
  • Buy 100 for £1.24 each and save 20%

Quick Overview

Good value for money Phono's availbale with 6 coloured marking rings, see below. Black, Yellow, White, Green, Red & Blue.

Availability: In stock

Check Prime Stock
Ship to: Worldwide
  • Black
  • Blue
  • Red
  • Yellow
  • Green
  • White

* Required Fields

£1.55

Details

Phono plug, black shell, gold plated contacts, rubber boot for best antikink protection, chuck type strain relief for cable O.D. 3.5 to 6.1 mm, color coding ring.

Technical Information


Electrical
Dielectric strength 0.5 kVdc
Insulation resistance ≥ 1 GΩ
Rated current- depends on mated connector
Contact resistance - depends on mated connector


Mechanical
Cable O.D. 3.5 - 6.1 mm
Lifetime > 1000 mating cycles
Wiresize 24 AWG


Material
Insulation - Thermoplastic
Strain relief - Internal plastic chuck


Environmental
Temperature range -25 °C to +70 °C

Additional Information

Connector Type RCA / Phono
Mains Connector Type No
Manufacturer Rean
Housing Type N/A
Metal Type.... Gold Plated
Poles 2 Pole
Current Rating (amps) N/A
Works with.... No
