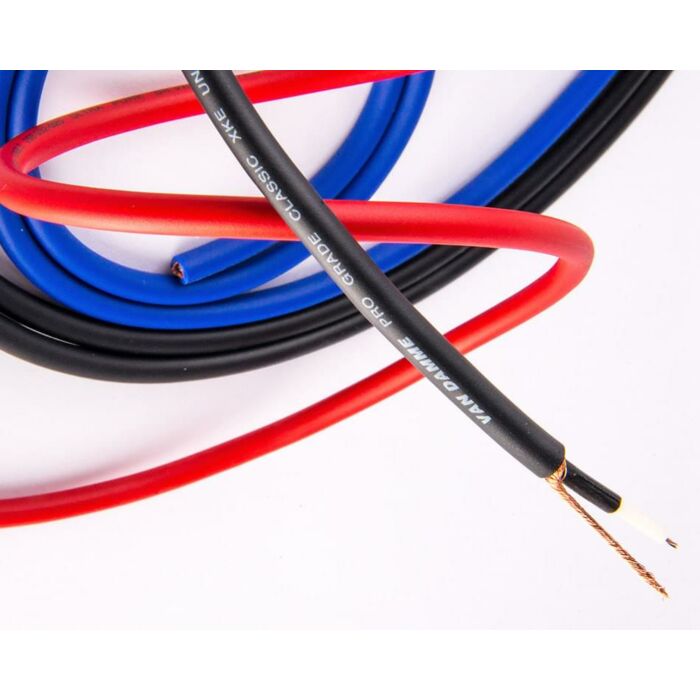

Van Damme Unbalanced Pro Patch LITE Cable (4.65mm OD). Instrument, 268-005-000

Van Damme Pro Patch LITE - Unbalanced

Pro-patch cable is a reduced overall diameter version of the Classic XKE instrument cable also for unbalanced audio use. It is particularly suited to connectors such as mono mini jacks and some phono connectors where the 6.00mm OD of the Classic Instrument cable would be too large.

Applications

• Mono mini jack and phono patch cables

• High density unbalanced audio patching

• Unbalanced audio rack wiring

Application notes

• Low noise, high flexibility and low overall diameter

• Ideal for overall diameter limited connectors

• Dual thermoplastic/lapped copper screens for excellent noise rejection

• Ultra pure oxygen free copper for outstanding sonic integrity

Mechanical specification

Conductor Material - Bare silver plated UPOFC wire

Stranding - 3 x 0.20mm

Material - Bare ultra pure oxygen free copper wire

Stranding - 4 x 0.20mm

Insulation Material - Foamed Polyethylene

Diameter  - 1.60mm ±0.10

Screen 1 - 0.40mm conductive thermoplastic

Screen 2 - 80 x 0.10mm close lapped oxygen free copper wire

Jacket Material - Flexible PVC/Neoprene composite

Average thickness - 0.50mm

Overall diameter - 4.50mm ±0.15

Electrical characteristics

Resistance Conductor 47 Ohm/Km

Insulation M Ohm/Km >5000

Capacitance Core to shield - <90 pF/m
