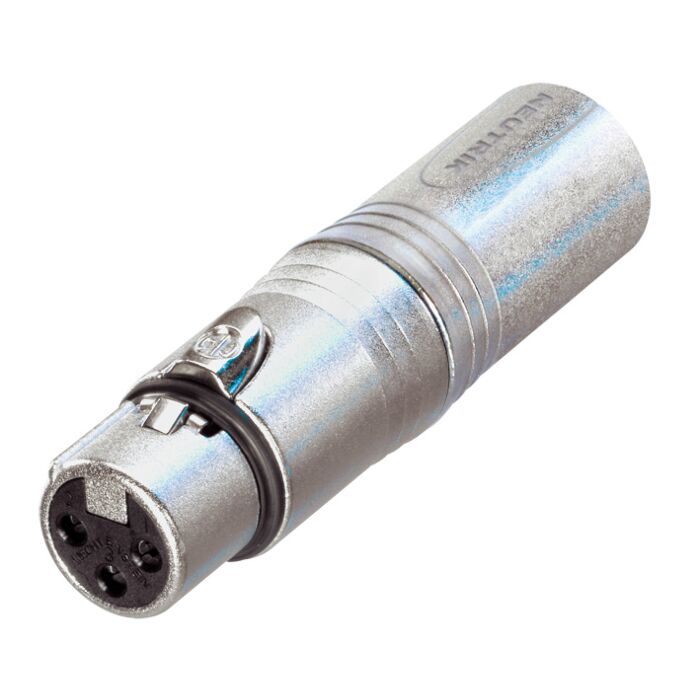

Neutrik NA3F5M 3 Pin XLR Female to 5 Pin Male. DMX Turn Around Adaptor Converter
£16.39
In stock
We have 48 items in stock!
SKU
ADAPTER_NA3F5M
Multibuy discounts calculated at checkout
- Buy 5 for £15.57 each and save 5%
- Buy 10 for £14.75 each and save 10%
- Buy 15 for £13.93 each and save 15%
- Buy 20 for £13.11 each and save 20%
3 pole XLR female - 5 pole XLR male for lighting (DMX) applications
NA3F5M
3 pole XLR female - 5 pole XLR male for lighting (DMX) applications
Features and Benefits
Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
Professional look and compact space saving design, based on the XX Series
Rugged diecast shell for best reliability
Technical Information
Electrical
- Contact resistance - ≤ 3 mΩ
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 2 GΩ
- Rated current per contact - 3 A
Mechanical
- Insertion force - < 20 N
- Withdrawal force - < 20 N
- Lifetime - > 1000 mating cycles
- Locking device - Latch lock
Material
- Contact plating - 2 µm Ag
- Contacts - Bronze (CuSn6) (female)
- Insert - Polyamide (PA 6.6 30 % GR)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
Environmental
- Temperature range - -30 °C to +80 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Feedthrough |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
