Van Damme 12G 75ohm Coax - Enhanced UHD - RG6 Style Solid Core - 268-875-006
As low as
£0.86
In stock
SKU
CABLE.VD.COAX.12G.RG6.UHD-PRNT

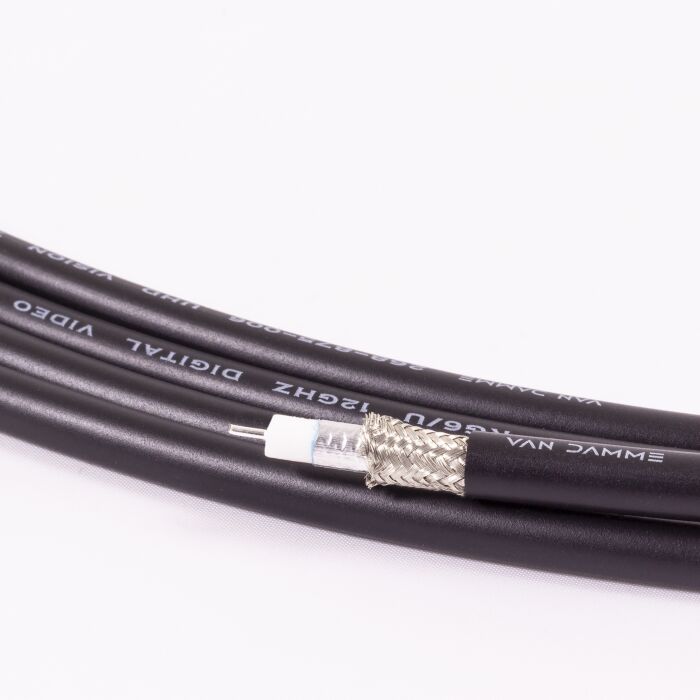

Van Damme Enhanced Performance HD Vision coaxial cable is based around the industry standard RG6/U, at 7mm overall diameter this is a heavy-duty cable. It has a silver-plated solid centre conductor so stiffer than stranded versions but offers high performance over longer lengths.
Van Damme Enhanced Performance HD Vision coaxial cable is based around the industry standard RG6/U, at 7mm overall diameter this is a heavy-duty cable. It has a silver-plated solid centre conductor so stiffer than stranded versions but offers high performance over longer lengths.
Precision construction ensures trouble free performance with 4K Single-link 12 Gb/s UHDTV, SMPTE 424M and 292M HD-SDI signals as well as being backwards compatible with HDTV, 3G-SDI, HD-SDI, SDI and analogue video. Distances vary so please check out our guide below.
Due to the construction of this cable, it is a little stiffer than other Van Damme HD cables. The most hard-wearing cable is the ‘RG6 Flexible’
- Equivalent to Belden 4694R
- RG6/U. 7mm Overall Diameter
- Transmission of 4K Single-link, 12 Gb/s UHDTV; SMPTE 2082-1 12 Gb/s UHDTV & SMPTE 2081-1 6 Gb/s UHDTV
- Excellent cable for 4K UHD, HDTV, 3G-SDI, HD-SDI, SDI and analogue video signals
- 720p, 1080i, 1080p, 1080p120, 2160p30 compatible
- Solid centre conductor for High-Performance
- Designed for Cinema rooms, touring and outside broadcast
**Check out our ‘Length v’s Performance Guide’
Figures shown generally involve a 20% tolerance (de-rating) due to the many factors that can influence performance. Care should always be taken with Coaxial cables when installing and using dynamically to not twist, bend or crush them as this will have a significant impact on performance.
Conductor - Silver plated oxygen free copper
- Stranding 1 x 1.02 mm
- Size 0.79 mm2, AWG 18
Dielectric Gas injected foam skin polyethylene
Diameter (mm) - 4.60
Screen 1 - Aluminium/polyester foil (bonded) > 100%
Screen 2 - Tinned oxygen free copper braid > 95%
Overall jacket - Flexible PVC composite Jet Black RAL 9005
Overall diameter (mm) - 6.95 ± 0.25
Bend radius - 15 x overall diameter
Operating temperature - -30 to +75 ⁰C
Conductor resistance (Ohm/km) - 21
Capacitance - (pF/m) 52
Impedance (Ohms) - 75 ± 5
Attenuation (dB/100m)
- 100 MHz 6.20
- 135 MHz 6.80
- 180 MHz 8.00
- 270 MHz 10.00
- 720 MHz 16.00
- 1500 MHz 24.00
- 3000 MHz 35.00
Part Number - 268-875-006
Description - Van Damme Enhanced UHD Vision 12Ghz solid conductor coax RG6/U
Max. Reel Length - 500 m
Recommended BNC Connectors
- Neutrik rearTWIST HD BNC NBNC75BTU11
- Neutrik rearTWIST UHD BNC NBNC75BTU11X
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Brand | Van Damme |
| Cable Conductor | Solid Core - Silver plated oxygen free copper - Size 0.79 mm2, AWG 18 |
| Cable Resistance | 21 Ohm/km |
| Cable Capacitance | 52 pF/m |
| Cable Screening | Aluminium/polyester foil (bonded) / Tinned oxygen free copper braid |
| Overall Diameter | 6.95mm |
| Cable Jacket | Flexible PVC composite Jet Black RAL 9005 |
