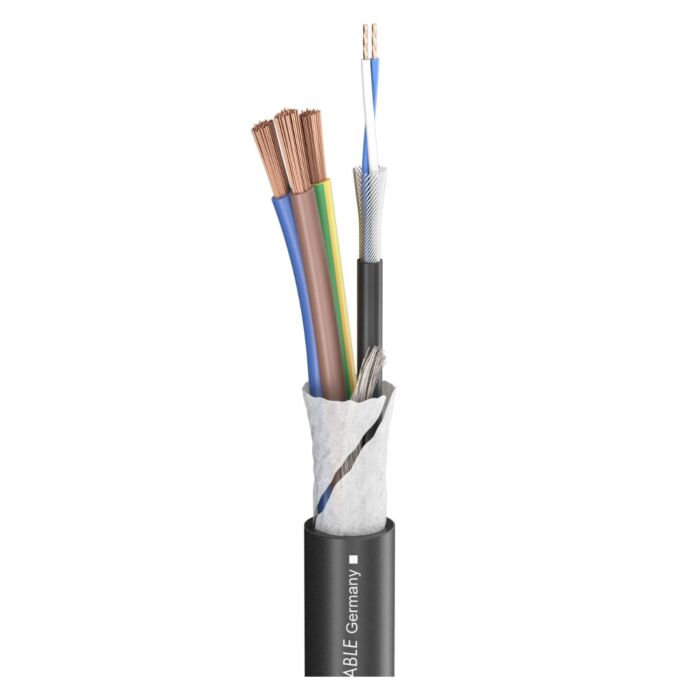

Sommer SC-Monolith Combo Cable. 3x1.5mm Power & 1x Signal Pair (DMX) - COMPACT

As low as £1.25
In stock
SKU
SO.MONOLITH.COMP

Maximum number of characters: 10

A compact version of Sommers Monolith cable, designed specifically for DMX lighting applications offering the ability to run DMX signal and power down one tidy cable. Now with an imressivly thin 9.5mm overall diameter.

When the lights begin to dance...

Advantages:

  • Parallel control for lighting boards through one cable via power line and DMX signal
  • Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
  • Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding

Application:

  • Control line for DMX lighting consoles (wave impedance of )
  • Analogue + digital audio multipair with power supply
More Information
Cable Type Instrument
Brand.... Sommer
Core Count.... 2 Way
Cable Conductor OFC oxygen free copper
Cable Resistance 110 Ω AES / EBU
Cable Capacitance per 1m 52pF
Cable Screening Shielding (audio): Copper spiral, tin-plated - Shielding (AES/EBU, DMX): Copper spiral, tin-plated
Overall Diameter 9,5 mm
Cable Jacket PVC
Cable Colour.... No
