Neutrik 3 Pin NC3MXX-EMC Male XLR Connector
£14.39
In stock
We have 162 items in stock!
SKU
XLR_NC3MXX-EMC
Multibuy discounts calculated at checkout
- Buy 5 for £13.67 each and save 5%
- Buy 10 for £12.95 each and save 10%
- Buy 15 for £12.23 each and save 15%
- Buy 20 for £11.51 each and save 20%
Gives enhanced RF screening when there are particular problems with radio transmission or mobile phones.
Gives enhanced RF screening when there are particular problems with radio transmission or mobile phones.
NC3MXX-EMC

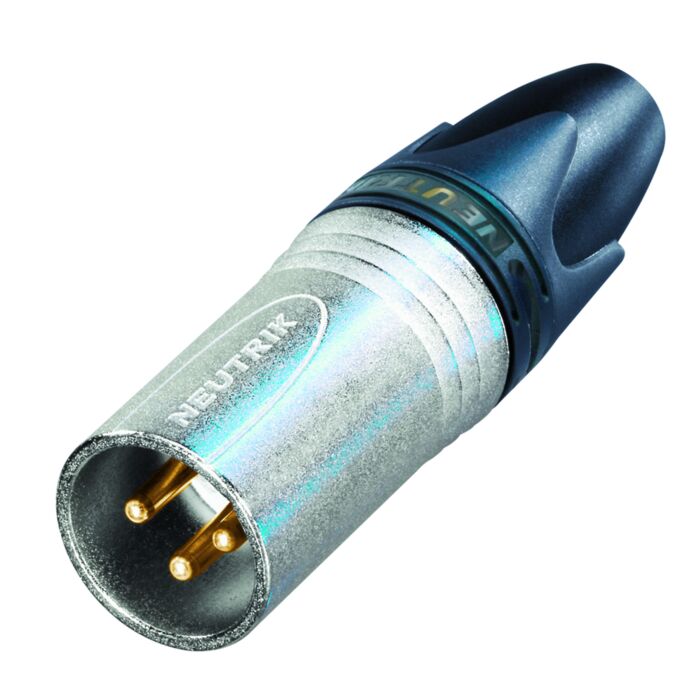

3 pole male EMC-XLR cable connector
The EMC-XLR Series is a specifically designed version of the XX series to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as high-pass filter with a cut-off frequency around 10 MHz.
An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.
Features and Benefits
- 3 pole male and female XLR cable connector with integrated capacitive shield to shell connection
- Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
- Cable shield - Pin 1 connection includes EMI suppression bead to block high frequencies
- Avoid ground loops as there is no LF-shield connection to ground
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Electrical
- Capacitance between contacts - ≤ 4 pF
- Contact resistance - ≤ 3 mΩ (inner)
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 10 GΩ (initial)
- Rated current per contact - 5 A
- Rated voltage - < 50 V
Mechanical
- Cable O.D. - 3.5 - 8.0 mm
- Insertion force - ≤ 20 N
- Withdrawal force - ≤ 20 N
- Lifetime - > 1000 mating cycles
- Wiresize - max. 0.75 mm²
- Wiresize - max. 20 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
Material
- Boot - Polyurethan
- Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA 6.6 30 % GR)
- Locking element - Zinc diecast (ZnAl4Cu1)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
- Strain relief - Polyacetal (POM)
Environmental
- Flammability - UL 94 HB
- Standard compliance - IEC 61076-2-103
- Protection class - IP 40
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +80 °C
