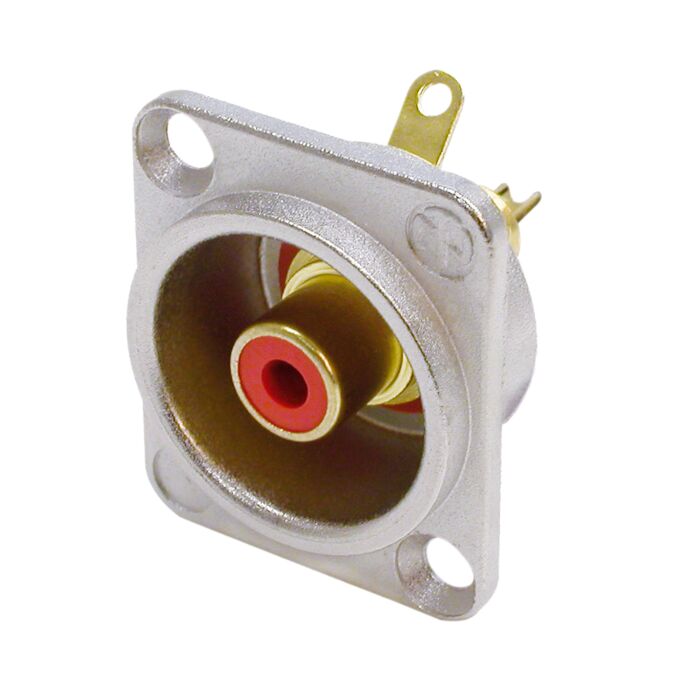

Neutrik NF2D-2 Phono RCA Chassis Panel Mount. Nickel shell. Red ID
£6.01
In stock
We have 148 items in stock!
SKU
CHASSIS_NF2D2-Red
Multibuy discounts calculated at checkout
- Buy 5 for £5.71 each and save 5%
- Buy 10 for £5.41 each and save 10%
- Buy 15 for £5.11 each and save 15%
- Buy 20 for £4.81 each and save 20%
Super durable, Panel Mount chassis connectors from Neutrik. Socket in nickel D-shape housing, black isolation washers, solder version. Ideal for patch bays, patch sockets in bars/restaurants, etc
Super durable, Panel Mount chassis connectors from Neutrik. Socket in nickel D-shape housing, black isolation washers, solder version. Ideal for patch bays, patch sockets in bars/restaurants, etc
NF2D-0
Features & Benefits
- Precisely machined to our demanding quality standards
- Gold plated contacts
Technical Spec
Electrical
- Capacitance between contacts ≤ 9 pF
- Contact resistance <5G mΩ (inner)
- Dielectric strength - 0,5 kVdc
- Insulation resistance < 5 GΩ
- Rated current per contact -16 A
- Rated voltage - 50 V
Mechanical
- Lifetime > 2000 mating cycles
- Wiring - Solder contacts
- Mounting direction - front
- Chassis shape - D
Material
- Contact plating - 5 µm Au over 5 µm Ni
- Contacts - Brass (CuZn39Pb3)
- Shell - Zinc diecast (ZnAl4Cu1)
Environmental
- Flammability -UL 94 HB
- Standard compliance -IEC 601-14
- Protection class -IP 40
- Solderability -Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
