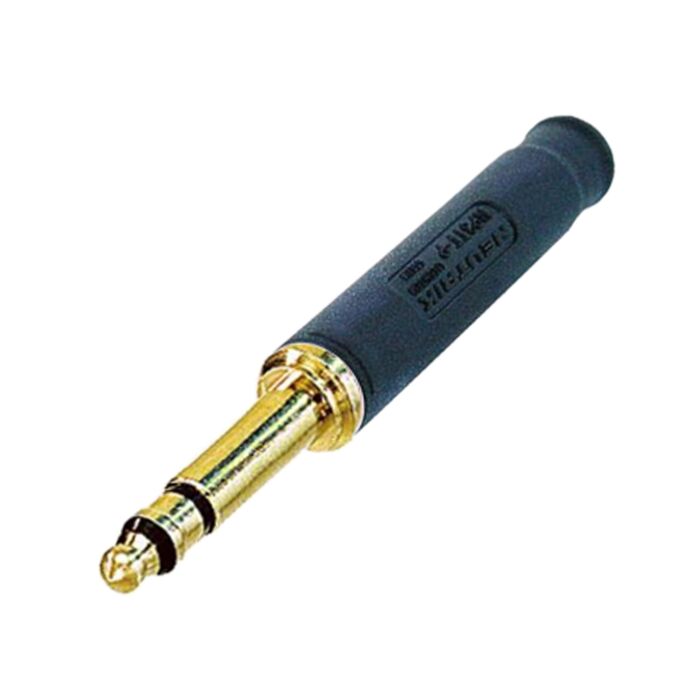

Neutrik NP3TT-P-AU-B Gold Bantam Black Connector. Balanced Jack Pro.

Features & Benefits

• Designed for pro audio applications
• Gold contacts guarantee best conductivity
• Robust ergonomic design - long-lasting and dependable
• Standard HEX crimp cable clamp for shield termination and cable retention
• Coloured sleeves available for coding and marking

Technical Spec

Title - NP3TT-P-AU-B

Connection Type - Plug

Gender - male

Electrical

• Contact resistance - depends on mating connector mΩ
• Dielectric strength - 1 kVdc
• Insulation resistance - > 2 GΩ (initial)
• Rated current per contact - depends on mating connector A
• Rated voltage - < 50 V

Mechanical

• Cable O.D. - 4 - 4.8 mm
• Crimp size - 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
• Lifetime - > 1000 mating cycles
• Wiresize - 0,25 mm²
• Wiresize - 24 AWG
• Wiring - Solder contacts

Material

• Bushing - Polyacetal (POM) + PU
• Contact plating - 0.2 µm Au TRIBOR®
• Contacts - Bronze (CuSn6) (Tip)
• Insert - Polyamide (PA 6.6 30 % GR)
• Shell - Brass (CuZn39Pb3)
• Shell plating - Polyamide (6 30% GR) (black)

Environmental

• Standard compliance - MIL-P-642/13
• Solderability - Complies with IEC 68-2-20
• Temperature range - -20 °C to +65 °C
