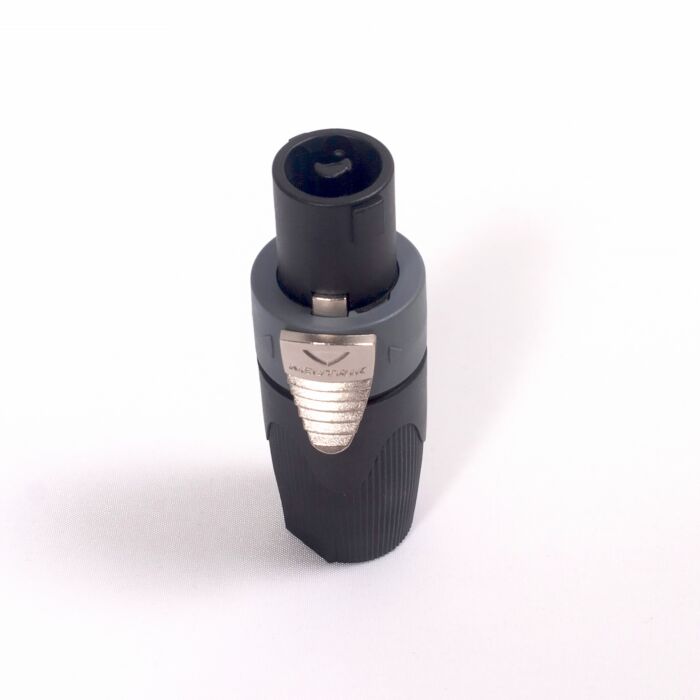

Neutrik NL2FX 2 Pole Female Speakon Connector

2 pole cable connector, chuck type strain relief

Features & Benefits

• Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
• Only 3 parts, easy to assemble
• High impact materials – long-lasting and reliable
• Easy and extremely precise locking system "Quick Lock"
• 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
• Improved grip on latch
• Mates with 4-pole chassis connector as well and makes contact with +1/-1

Title - NL2FX

Connection Type - speakON

Gender - female

Electrical

Contact resistance - < 2 mΩ (after lifetime)

Dielectric strength  - 4 kVdc (peak)

Insulation resistance - > 1 GΩ (after dampheat)

Rated current per contact - 40 A rms continuous

Rated current per contact - 50 A audiosignal, duty cycle 50 %

Rated voltage - 250 V (Insulation)

Attention - speakON is not to be used as an AC mains or power supply connector!

Mechanical

Cable O.D. - 6 - 10 mm

Cable retention - ≥ 220 N (subject to cable O.D. and material)

Lifetime - > 5000 mating cycles

Wiresize - 1.5 - 4 mm²

Wiresize - 16 - 12 AWG

Wiring - screw type terminals or soldering

Locking device - Quick Lock (latch)

Material

Contact plating - 4 µm Ag

Contacts - Brass (CuZn39Pb3)

Insert - PBTP 20 % GR

Locking element - Zinc diecast (ZnAl4Cu1)

Shell - PBTP 20 % GR

Strain relief - Polyacetal (POM)

Environmental

Flammability - UL 94 HB

Solderability - Complies with IEC 68-2-20

Temperature range - -30 °C to +80 °C
