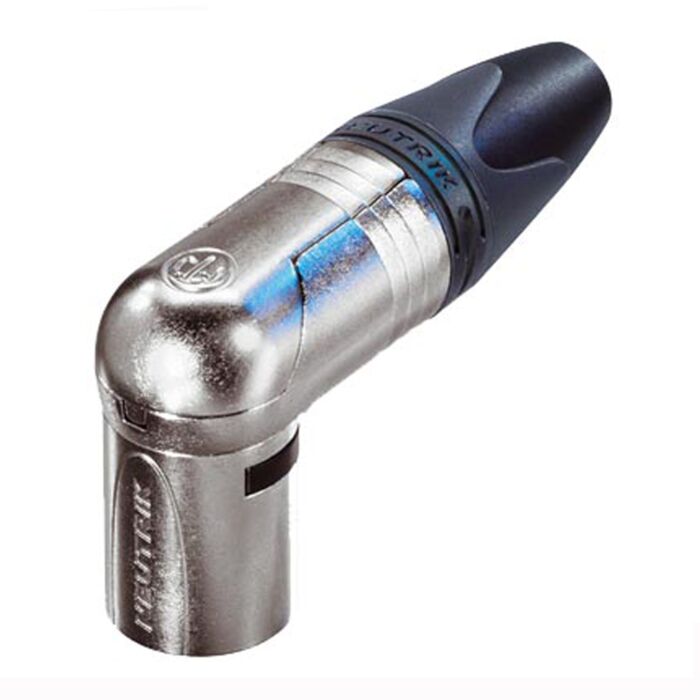

Neutrik 3 Pin NC3MRX Right-angled Male XLR Connector

Neutrik NC3MRX Right-Angled XLR

Balanced XLR Connector, 3 Pole, Right Angled, Male, Silver Contacts, Nickel Housing

This right angle XLR gives ingenuity to an already industry standard connection. Giving you flexibility is this connector’s objective. 5 different pivot positions allow you to select your angle of preference and cable direction, ideal in situations where space is at a premium.  A product from the latest Neutrik XX range, this right angled connector offers an improved locking mechanism without the ‘window’, making the housing more stringent and durable, improved chuck type strain relief and a rugged diecast metal shell. This is a very sturdy and handy connector.

The Silver Contacts are made from bronze and plated with silver. The conductivity is superior to gold

3 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case three. This is a balanced/stereo cable. Two signal carriers and a ground

Tech Specs

Electrical

• Capacitance between contacts - ≤ 4 pF
• Contact resistance - ≤ 3 mΩ
• Dielectric strength – 1.5 kVdc
• Insulation resistance - > 2 GΩ (initial)
• Insulation resistance - > 1 GΩ (after damp heat test)
• Rated current per contact - 16 A
• Rated voltage - 50 V

Materiel

• Boot - Polyuretan
• Bushing - Polyamide (PA 6 15% GR)
• Contact plating - 2 µm Ag
• Contacts - Bronze (CuSn8)
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Zinc diecast (ZnAl4Cu1)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
• Strain relief - Polyacetal (POM)
