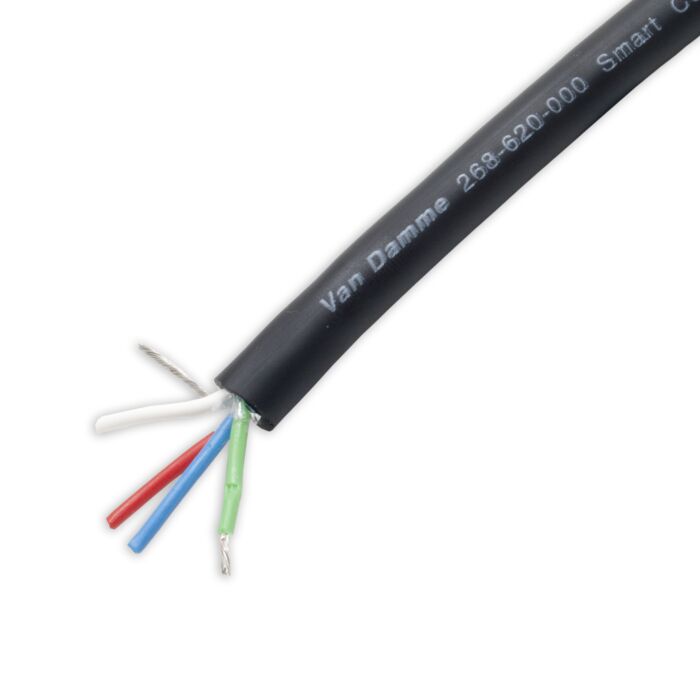

Van Damme Digi-Tour DMX 4 Core and Screen AES/EBU Lighting Cable. 268-620-000

As low as £0.53
In stock
SKU
VD.DMX.4xCORE

Van Damme Smart Control DMX 2 pair control cable is a robust, tour grade jacketed flexible cable for transmission of the DMX512 lighting protocol. 21AWG conductors and foamed polyethylene insulation ensure that the data is faithfully transmitted even over extended distances.

The Van Damme Smart Control Range comprises a PVC or LSZH jacketed home automation control cable and 1 and 2 pair DMX control cables. Van Damme Smart Control home automation cables are primarily for use with common automation systems increasingly found in home and office environments. These systems run a screened twisted pair with an additional 2 wires for DC voltages used, for example, for powering remote programmable touch panels. Van Damme DMX512 Cables are robust, tour grade PVC jacketed precision foil screened cables for the transmission of the DMX lighting control protocol.





Mechanical Specification

2 pair 268-620-000



Pair Conductors

16 x 0.20mm (0.50mm2) AWG21

tinned oxygen free copper



Insulation

Foamed polyethylene O.D. 1.80mm



Pair colours

Red/Blue & Green/White



Cabling

2 pairs of 2 cores twisted together with fillers;

polyester wrapping



Screen

Lapped Aluminium/Mylar foil



Separator

16 x 0.20mm (0.50mm2) AWG21

tinned oxygen free copper



Overall diameter

8.30mm ± 0.20mm



Overall jacket

Special PVC composite matt black RAL9005 Special PVC composite matt black RAL9005



Bend Radius

10 x Overall Diameter



Weight

268-620-000 55 Kg/km

More Information
Cable Type 110 Ohm DMX
Brand.... Van Damme
Cable Conductor -
Cable Resistance -
Cable Capacitance -
Cable Screening -
Overall Diameter -
Cable Jacket -
