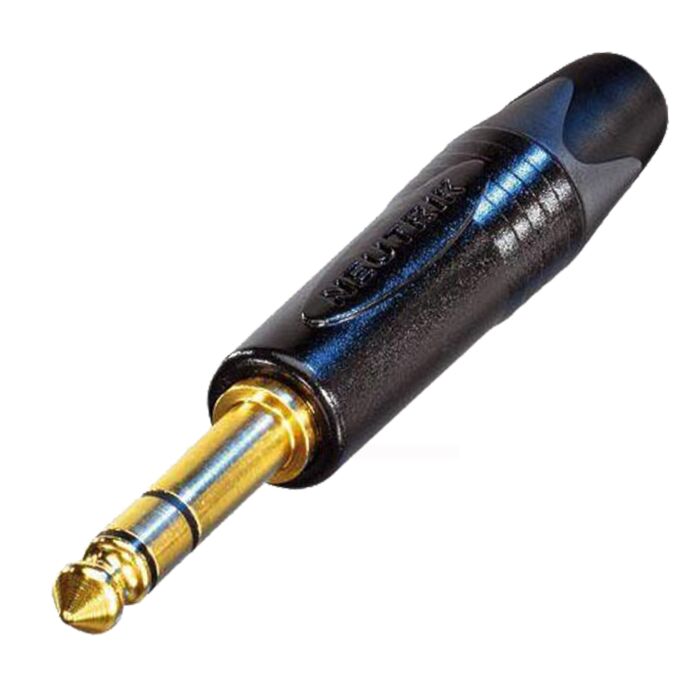

Neutrik NP3X-B Gold 1/4" TRS 3 Pole Jack Plug Connector

£4.57
  • Buy 10 for £4.16 each and save 9%
  • Buy 20 for £3.98 each and save 13%
  • Buy 50 for £3.81 each and save 17%
  • Buy 100 for £3.66 each and save 20%

Quick Overview

Stereo/balanced ¼’’ jack Connector, 3 Pole, Male, Gold Contacts, Black Chromium Housing

Availability: In stock

Check Prime Stock
Ship to: Worldwide
  • Black
  • Blue - +£0.50
  • Red - +£0.50
  • Yellow - +£0.50
  • Green - +£0.50
  • White - +£0.50
  • Purple - +£0.50
  • Orange - +£0.50
  • Grey - +£0.50
  • Brown - +£0.50

* Required Fields

£4.57

Details

Neutrik NP3X-B



Stereo/balanced ¼’’ jack Connector, 3 Pole, Male, Gold Contacts, Black Chromium Housing



Neutriks gold plated ¼ inch stereo jack. This connector comprises of a glossy black die cast metal shell to match its black boot and a precise one piece machined tip, it not only sounds great but looks sleek and stylish too. The tough plastic boot and incredibly robust chuck type strain relief make this connector very hard wearing. It delivers a rounded and warm tone. Ideal for use with guitars and other mono/unbalanced instruments





The Gold Contacts offer superior durability against silver



3 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case three. Two signal carriers and a ground. This can be used in a balanced or stereo assembly. Making it Ideal for ‘Y’ cables and all balanced audio applications





Tech Specs



Electrical

Contact resistance - depends on mating connector mΩ

Dielectric strength - 1 kVdc

Insulation resistance - > 2 GΩ (initial)

Insulation resistance - ≥ 1 GΩ (after damp heat test)

Rated current per contact - depends on mating connector A

Rated voltage - 50 V



Material

Bushing - Polyacetal (POM) + PU

Contact plating – 0.2 µm Au

Contacts - Brass (CuZn39Pb3)

Insert - Polyamide (PA 6.6 30 % GR)

Shell - Zinc diecast (ZnAl4Cu1)

Shell plating – Black Chromium

Strain relief - Polyacetal (POM)

Additional Information

Connector Type TRS Stereo Jack
Mains Connector Type No
Manufacturer Neutrik
Works with.... No
Poles 3 Pole
Metal Type.... Gold Plated
