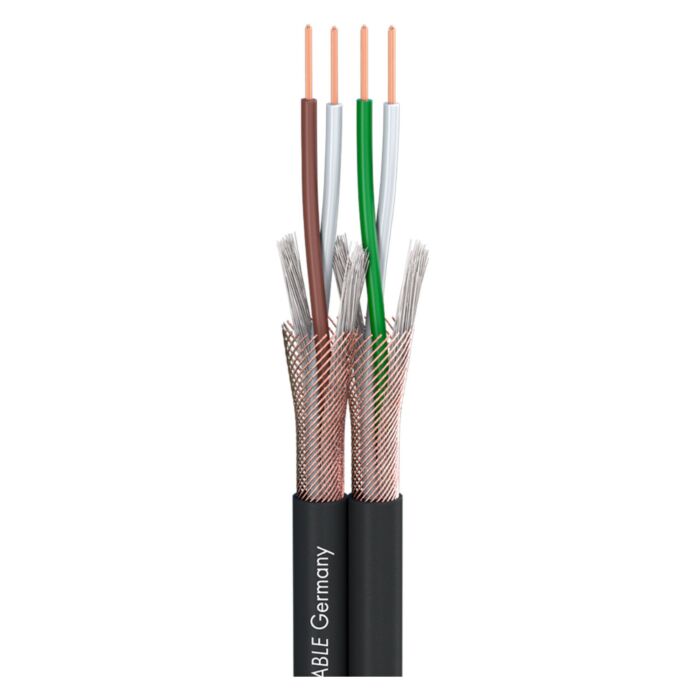

Sommer Peacock Balanced Twin Splitter Cable (DMX Compatible)

As low as £0.65
In stock
SKU
CABLE.TWIN.SOPCOK

Two friends we must be...

and fit into two plugs. Or into three - or why not even four? You can do a lot with this cable. But primarily it will be used as a stereo cable for microphones and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be separated anytime. The single line will fit into every jack, XLR, and RCA plug.


Sommer Peacock MKII Dual balanced (Stereo) cable

Two friends we must be...

and fit into two plugs. Or into three - or why not even four? You can do a lot with this cable. But primarily it will be used as a stereo cable for microphones and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be separated anytime. The single line will fit into every jack, XLR, and RCA plug.



Advantages:

  • Highly flexible due to the use of a cold-resistant and soft PVC jacket
  • Multiple applications, as the individual wires can be separated anytime

Application:

  • Wiring of stereo microphones
  • Assembly of insert cables

Technical Data:
- Colour: black
- Colour detailed: black
- Jacket material: S-PVC
- Jacket material (AES/EBU, DMX): S-PVC
- Number of Channels (AES/EBU, DMX): 2
- Inner conductor (AES/EBU, DMX): 2
- Inner conductor (AES/EBU, DMX): 0,22 mm²
- Inner conductor Ø (AES/EBU, DMX): 0,53 mm
- AWG (AES/EBU, DMX): 24
- Shielding: Copper spiral sleeve
- Shielding (AES/EBU, DMX): Copper spiral sleeve
- Copper strands (AES/EBU, DMX): 28
- Conductor insulation material: Foam/Skin-PE
- Conductor insulation material (AES/EBU, DMX): Foam/Skin-PE
- Signal transmission: symmetrical
- Shielding factor: 95 %
- Packing: 100 m spool
- Style variant: twin
- Application: Patch & Microphone Cable
- Copper strand Ø (AES/EBU, DMX): 0,10 mm
- Conductor insulation Ø: 1,3 mm
- Conductor insulation Ø (AES/EBU, DMX): 1,3 mm
- Width: 9,2 mm
- Height: 4,5 mm
- Temperature min.: -30 °C
- Temperature max.: 70 °C
- Weight per 1 m: 49 g
- Fire load per m: 0,18 kWh
- UV-resistant: yes
- Impedance: 110 Ω
- Surge impedance (AES/EBU, DMX): 110 Ω
- Insulation resist. per 1 km: 0,5 GΩ
- Insulation resist. per 1 km (AES/EBU, DMX): 0,5 GΩ
- Cond. resistance per 1 km: 90 Ω
- Cond. resistance per 1 km (AES/EBU, DMX): 90 Ω
- Shield. resistance per 1 km: 36 Ω
- Capac. cond./cond. per 1 m (AES/EBU, DMX): 70 pF
- Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF

More Information
Cable Type Twin (Joined Pairs)
Brand.... Sommer
Core Count.... 2 Way
Cable Conductor -
Cable Resistance -
Cable Capacitance -
Cable Screening -
Overall Diameter -
Cable Jacket -
