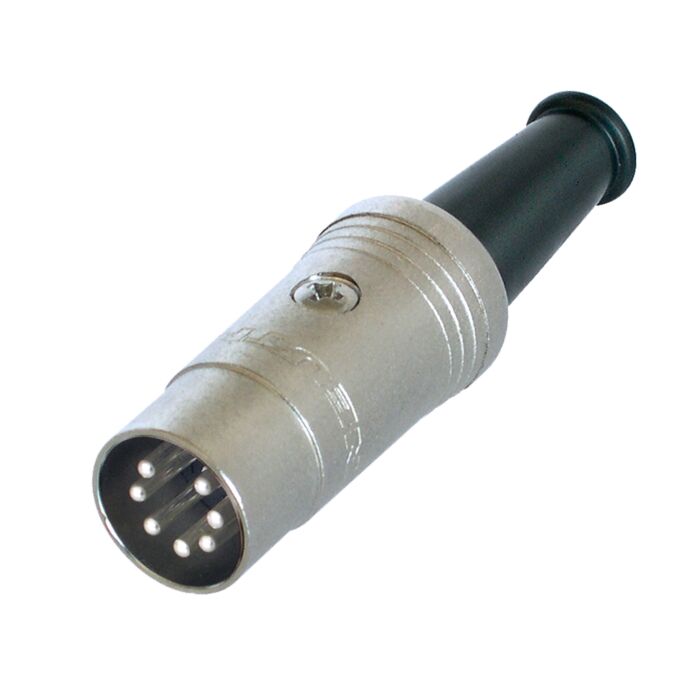

7 Pin Din Connector. Rean NYS323. Silver Body. Silver Pins
£1.84
In stock
We have 1286 items in stock!
SKU
DIN_NYS323*7
7 Pin, Male, Silver Contacts, Silver housing. This is a solid Midi connector from Rean, an affiliate of Neutrik.
7 Pin, Male, Silver Contacts, Silver housing. This is a solid Midi connector from Rean, an affiliate of Neutrik.
Technical Specification
Electrical
- Dielectric strength - 0.5 kVdc
- Insulation resistance - ≥ 1 GΩ
- Rated current - depends on mated connector
- Contact resistance - depends on mated connector
Mechanical
- Cable O.D - 5 mm
- Lifetime - > 1000 mating cycles
- Wiresize - 26 AWG
Material
- Contact plating - Ag
- Contacts - Brass (CuZn39Pb3)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
- Insulation - Thermoplastic
- Bushing - PVC, crimp type Zn plated strain relief
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 7 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
