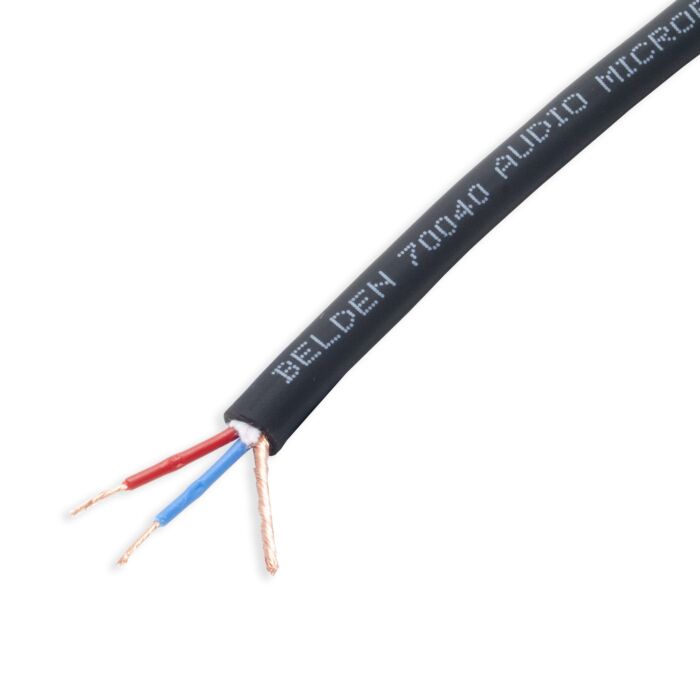

Belden 70040 Flexible Black Microphone Balanced Audio Cable. 24AWG. Midi. Mic
As low as
£0.40
In stock
SKU
CABLE.BAL.BEL70040.PRNT
A flexible microphone cable from Belden designed for audio and installation purposes with a flexible PVC matte finish jacket.
A flexible microphone cable from Belden designed for audio and installation purposes with a flexible PVC matte finish jacket.
- Conductor 32 x 0.10 mm Bare Oxygen-free Cu
- Insulation Material Polyethylene
- Spiral screening Material 0.12 mm bare Cu Coverage > 90%
- Sheath Material Flexible PVC with matte finish Diameter over sheath 6.10 ± 0.20 mm
- Resistance conductor @ 20°C < 78 Ω /km
- Capacitance conductor to conductor @ 1kHz 60 pF/m
- Minimum bending radius 10 x cable diameter
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Analogue Audio - Balanced |
| Cable Brand | Belden |
| Cable Conductor | Conductor 32 x 0.10 mm Bare Oxygen-free Cu |
| Cable Resistance | Resistance conductor @ 20°C < 78 Ω /km |
| Cable Capacitance | Capacitance conductor to conductor @ 1kHz 60 pF/m |
| Cable Screening | Spiral screening Material 0.12 mm bare Cu Coverage > 90% |
| Overall Diameter | 6.10 ± 0.20 mm |
| Cable Jacket | Flexible PVC with matte finish |
