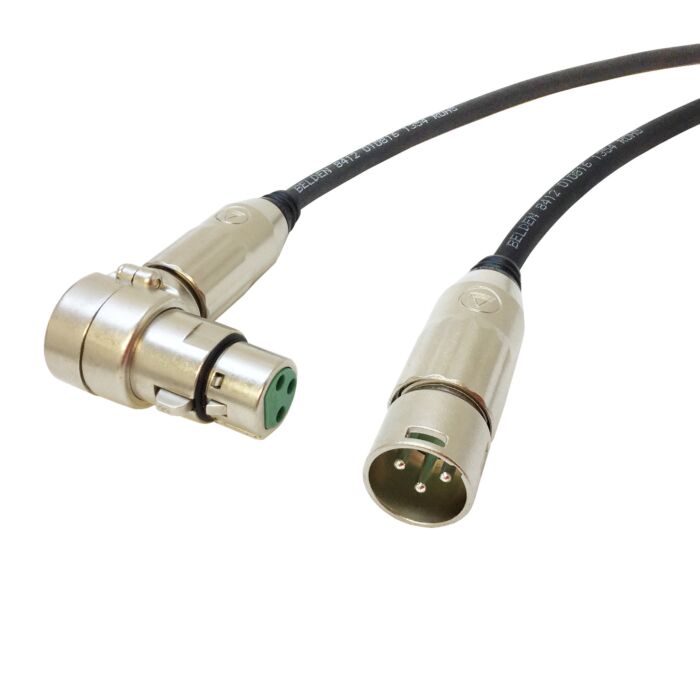

Belden Angled Female to Male XLR Lead. Low Impedance Rubber Balanced Cable. Active Monitor

As low as £23.30
In stock
SKU
XL8732F-BEL8412.-AAA3M

Maximum 15 characters

High quality balanced XLR leads for interconnecting devices such as microphones, mixing desks, home AV systems, sound cards, monitor speakers, amplifiers, etc.



High quality balanced XLR leads for interconnecting devices such as microphones, mixing desks, home AV systems, sound cards, monitor speakers, amplifiers, etc.


Beldens low impedance, balanced microphone cable terminated with high-quality rugged Switchcraft 'AA Series' XLR's in both angled and straight connectors.

Beldens 8412 Cable is a flexible twin-conductor, low-impedance cable. This cable is known for its rugged reliability due to its rubber insulation and jacket, and a cotton wrap filler

20 AWG stranded (26x34) high-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, EPDM jacket.

The XLRs can be angled to which ever direction you require. Please specify the angle that you would like the cable setting at by sending us an email after checkout. The image above shows the available options. Please DO NOT leave a message using paypal as it will not be seen. As default the cable will be sent with the cable pointing ‘South’.





  • Conductors: (2) 20 AWG tinned copper, 26x34 stranding
  • Shield: Tinned copper braid, 85% coverage
  • Nominal capacitance: 33.0 pF/ft.
  • Nominal impedance: 67 ohms
  • Max. operating voltage: 600V RMS
  • Insulation material: EPDM rubber
  • Outer jacket material: EPDM rubber • Overall diameter: 0.262".



Belden 8412 low capacitance balanced cable

Terminated with Switchcraft Male and Angled Female XLRs

Manufactered using 4% silver solder

More Information
Cable Capacitance Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 33.000
Cable Resistance Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 10.600
Cable Conductor High Conductivity TC - Tinned Copper
Cable Screening Tinned copper braid, 85% coverage
Cable Jacket EPDM - Ethylene Propylene Diene Monomer Rubber
Overall Diameter 0.262"
Brand.... Belden
Application.... Tour & Studio Grade
Terminated with.... Male XLR to Female XLR
Metal Type.... Gold Plated
Poles 3 Pole
