Angled XLR Directions
  • Neutrik angled Female XLRs (NC3FRX) are limited to East, South, West, any further and the shells stop the latch from operating correctly.

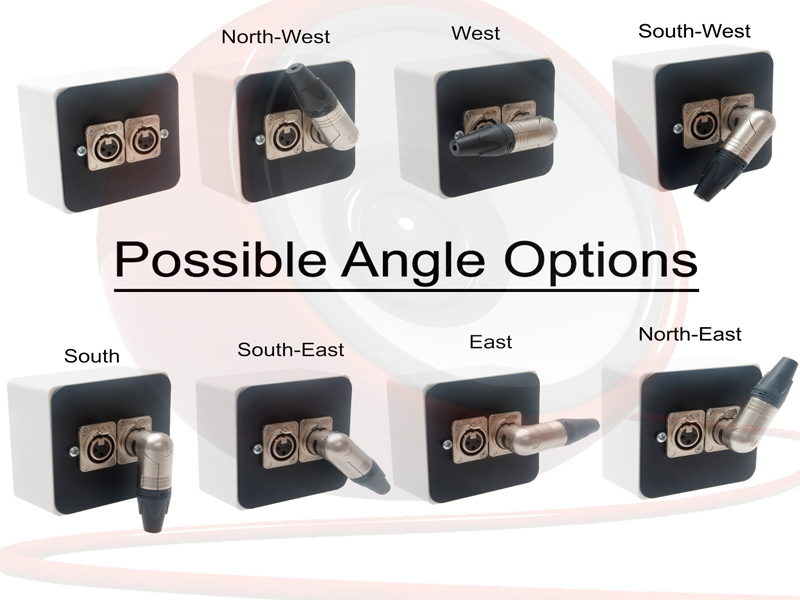

  • Neutrik angled Male XLRs (NC3MRX) can go as far as North East & North West but not North.



  • Squareplug Female & Male XLRs offer the full 360 degree rotation, cables can exit radially at 8 different angles (every 45°).



  • Our Neutrik Compact XLRs with push on caps, offer the full 360 degree rotation, non-incremental.



  • Switchcraft XL-8 Angled XLRs offer the full 360 degree rotation, with small increments.
  • Switchcraft Compact Angled XLRs (AAA3*BLP) offer the full 360 degree rotation, with small increments.



** Use the guides above/below to determine the cable exit that you require. Take note of the pin alignment, smiling or frowning, and choose the direction accordingly **
