Angled DIN Directions

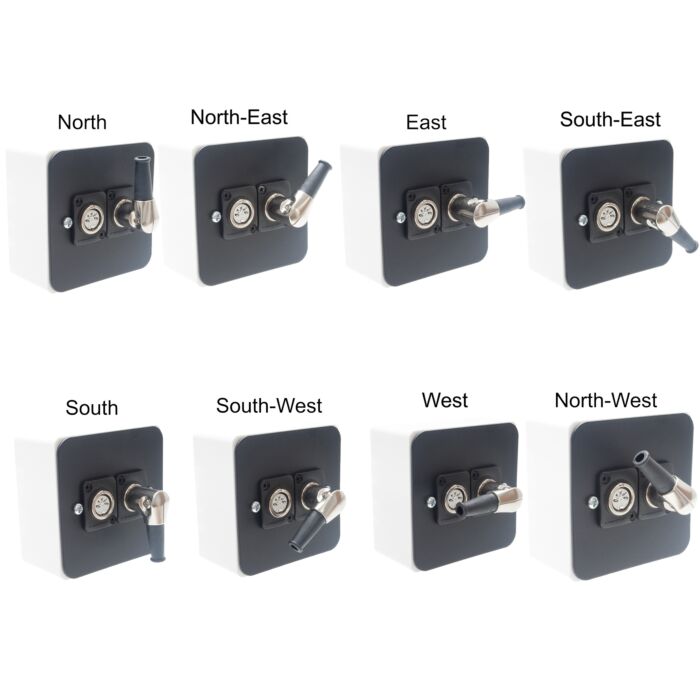

Use the guides below to determine the cable exit that you require. Take note of the pin alignment, in this case frowning, and choose the direction accordingly. If your input pins are smiling at you, choose the opposing direction.
