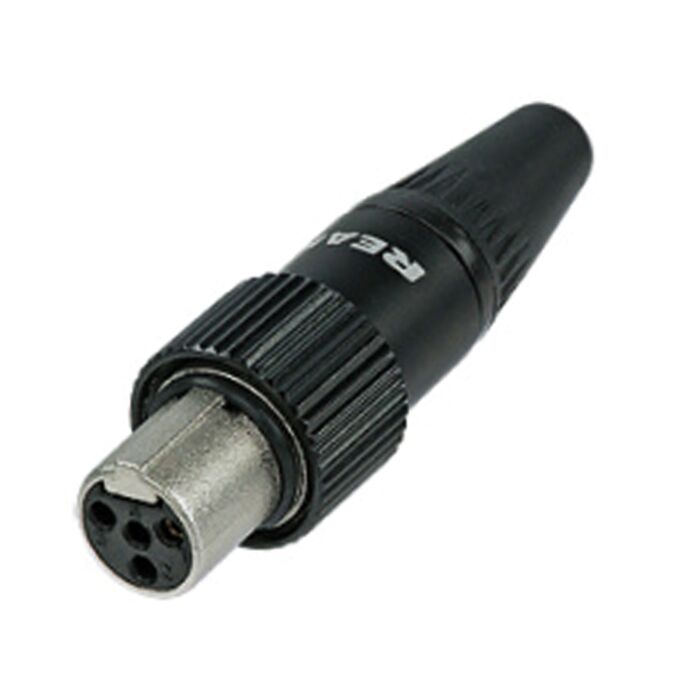

Rean 4 Pin RT4FCT-B Tiny XLR Connector - With Locking Screw
£3.25
In stock
We have 30 items in stock!
SKU
MiniXLR_RT4FC-T-B
- Buy 10 for £3.09 each and save 5%
- Buy 20 for £2.93 each and save 10%
- Buy 50 for £2.76 each and save 15%
- Buy 100 for £2.60 each and save 20%
The new Tiny XLR from Rean with Locking screw. The ideal connector for Peavey wireless mic systems.
RT4FCTB
4 pole TINY female cable connector with screw locking, black metal shell and nut, gold plated contacts,
- Easy to assemble
- Robust metal housing with best flex relief
- Shielded system – high noise immunity and EMI protection
- Intuitive and rugged locking mechanism provides secure locking system
- Millionfond proven chuck type strain relief – up to 4.00 mm cable diameter
- Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable
Electrical
Contact resistance - < 10 mΩ (inner)
Dielectric strength - > 0.5 kVdc
Insulation resistance - > 1 GΩ
Rated current per contact - < 5 A
Mechanical
Cable O.D. - 2.0 - 4.0 mm
Lifetime - > 5000 mating cycles
Wiresize - 0.22 mm²
Wiresize - 24 AWG
Wiring - Solder contacts
Material
Bushing - ABS / TPU
Contact plating - Au
Contacts - Bronze (CuSn6)
Insert - PA 6.6 30 % GF
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Black
Strain relief - POM
Environmental
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to + 85 °C
| Connector Type | Mini XLR |
|---|---|
| Manufacturer | Rean |
| Metal Type.... | Gold Plated |
| Poles | 4 Pole |
| Boot Colour | No |
| Cable Colour.... | No |
