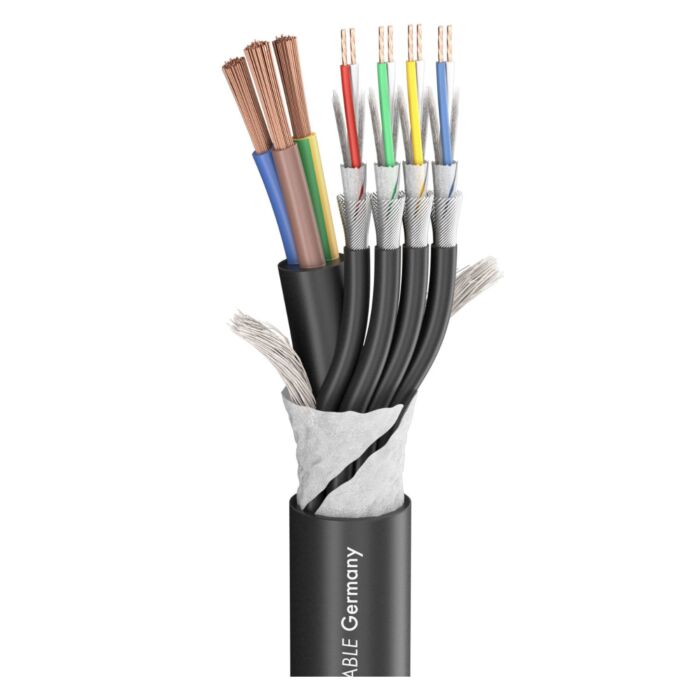

Sommer SC-Monolith Combo Cable. 3x1.5mm Power & 4x Signal Pair (DMX)
As low as
£1.83
In stock
SKU
CABLE.HYBRID.SO.MONOLITH.FOUR.PRNT
Multibuy discounts calculated at checkout
The SC-Monolith 4 POWER/DMX consists of a 3 x 1,50 mm² power cable and four DMX 512 line. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.
Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.
Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.
The SC-Monolith 4 POWER/DMX consists of a 3 x 1,50 mm² power cable and four DMX 512 line. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.
Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.
Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.
When the lights begin to dance...
Advantages:
- Parallel control for lighting boards through one cable via power line and DMX signal
- Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
- Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding
Application:
- Control line for DMX lighting consoles (wave impedance of 110 Ω)
- Analogue + digital audio multipair with power supply
