Custom Connex 12 Channel 37 Pin VEAM Stage Box - Send & Return
£548.46
Available for Pre-Order
SKU
CC.37pin.In.Out.StageBox
Multibuy discounts calculated at checkout
Custom Connex specializes in designing and manufacturing high-quality patching systems for the pro-audio industry. designacable have partnered with Custom Connex to offer a range of standardised patching systems that are available with short lead-times. These products are supplied by designacable, made by Custom Connex.
Custom Connex specializes in designing and manufacturing high-quality patching systems for the pro-audio industry. designacable have partnered with Custom Connex to offer a range of standardised patching systems that are available with short lead-times. These products are supplied by designacable, made by Custom Connex.

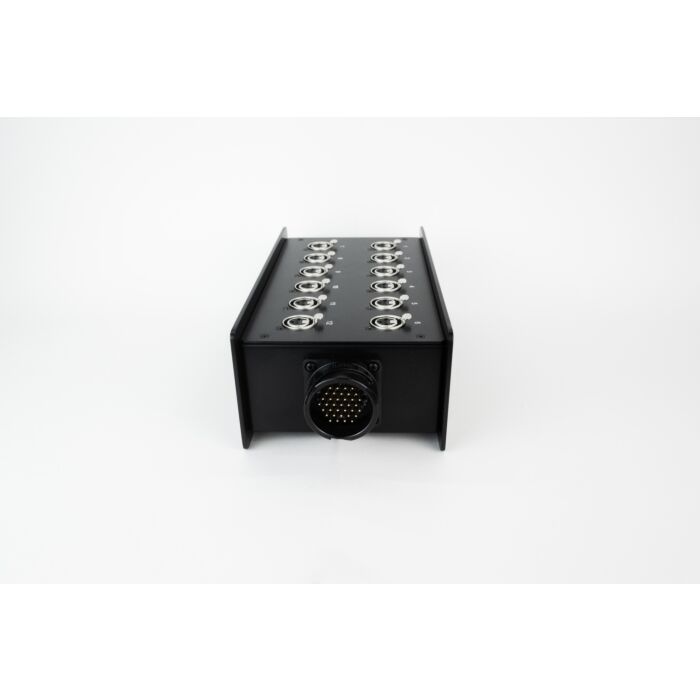

Designed to make your life easy, this is a 12 way flexible stage box system. Comprising of 12 Female XLR chassis inputs, 12 way (37pin) Veam Output and 4 side mount Male XLR chassis outputs. Allowing you to receive, send and split 12 channels of audio.
Wiring Notes
- Female XLR Chassis are wired to the Male VEAM Output
- Male XLR Chassis are wired in parallel to the Female XLR Chassis; Ch's 9-12
Compatibility
- All VDM standard wired cables (everything listed on this website!)
- VDM - LK37 - Ten47 TL37 - Syntax - Amphenol
Technical Specifications
- Light-weight 3mm Steel Enclosure
- Wired is AES grade 110ohm cable with OFC copper Conductors
- 12x Neutrik Female XLR chassis inputs
- 1x Ten47 12 way (37pin) Veam Output
- 4x Neutrik Male XLR chassis outputs (side mounted)
- Professionally Assembled & Electrically tested
Compliance & Standards
- RoHS compliant materials
- REACH standards
- Professional audio wiring conventions
| Delivery Speed | Made to Order - 7 Days MAX on delivery |
|---|
