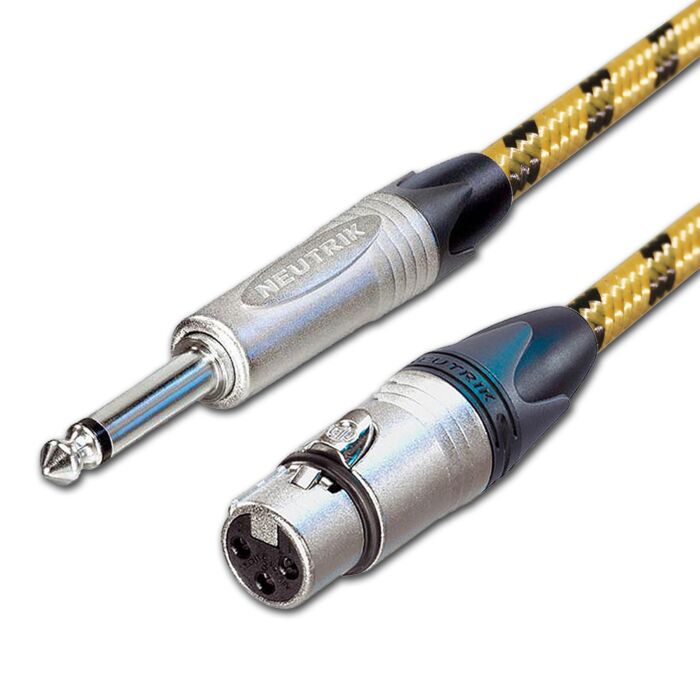

Vintage Neutrik Female XLR to Mono Jack lead. Mic / Mixer / DI Cable. NC3FXX
Unbalanced Female XLR to Male 6.35mm Mono Jack for use where a balanced signal cannot be achieved. For example when connecting a microphone into a DJ Mixer, out of a Di Box and into an amplifier, out of a mixing desk and into an unbalanced power amp input or as interconnects between equipment. Problems can be created using balanced leads in unbalanced situations, this range of cables cures these problems.
These leads are cleverly wired to improve the signal quality when connecting a balanced device such as a microphone to an unbalanced input, such as a DJ mixer. To do this we use a 2 core and screen cable, and wire the unused pin inside the XLR to the ground inside the jack. Its very simple, and very effective! Should you require any other wiring to suit your requirements, please ask
- Vintage Style Sommer SC Classique Instrument Cable
- Tour-Grade Neutrik Silver NP2X 1/4" Jack Plug
- Neutrik Silver NC3FXX Male XLR Connector
- Manufactured using 4% silver solder
- Find Out; How capacitance effects your cables and how to reduce it? HERE
- Find Out; The benefits of Sommer SC CLASSIQUE Cable? HERE
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
| Cable Capacitance | Capac/Cond./shield per 1m-78pF |
|---|---|
| Cable Resistance | Conductor resistance per 1 km - < 36 |
| Cable Conductor | AWG - 20. Inner conductors 28 x 0.15 mm |
| Cable Screening | - |
| Cable Jacket | Jacket, Diameter-PVC + Fabric 6.5mm |
| Overall Diameter | - |
| Brand.... | Sommer |
| Application.... | Studio Grade |
| Terminated with.... | Female XLR to Mono Jack |
| Metal Type.... | Silver Plated |
| Poles | 3 Pole |
